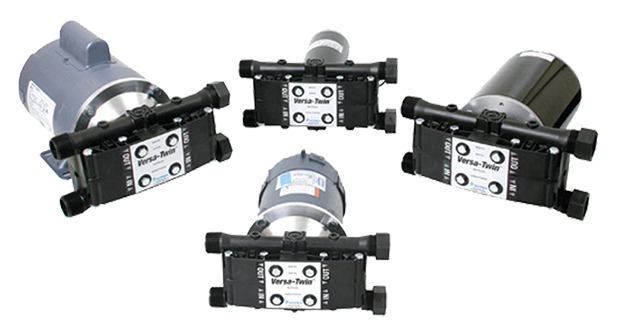

Pentair Hypro 2130 Series 39 Amp Plunger Pumps
Pentair Hypro 2130 Series 39 Amp Plunger Pumps
Pentair's newly designed Hypro 2130 Series Versa-Twin 39 Amp Plunger Pumps are available in standard models up to 4.0 GPM at 200 PSI.
- Molded from Noryl GTX for chemical resistance againstfertilizers, insecticides, chlorides, acids, and bleach
- Robust motor, ceramic plunger, and crank drive providemarket-leading long life without servicing
- 4-point 1” NPT flynut-ready connections allow for greaterflexibility in plumbing, easy installation and servicing, drainingand maintenance
- 1” ports allow for single-sided inlet plumbing
- Available in standard models up to 4.0 GPM (15.1 L/min) & 300 PSI (20.7 BAR)
Specifications
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Motor Type | Ports |
|---|---|---|---|---|---|---|---|
| 2130P-D395 | 2.9 | 11.0 | 300 | 20.7 | 2000 | ½ HP 12V DC Motor, 56C, 39 amps | 1" MNPT |
| 2130P-D399 | 4.0 | 15.1 | 200 | 13.8 | 2000 | ½ HP 12V DC Motor, 56C, 39 amps | 1" MNPT |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Motor Type | Ports |
|---|---|---|---|---|---|---|---|
| 2130P-D395 | 2.9 | 11.0 | 300 | 20.7 | 2000 | ½ HP 12V DC Motor, 56C, 39 amps | 1" MNPT |
| 2130P-D399 | 4.0 | 15.1 | 200 | 13.8 | 2000 | ½ HP 12V DC Motor, 56C, 39 amps | 1" MNPT |
