Pentair Hypro 2200B-P Series Duplex Plunger Pumps

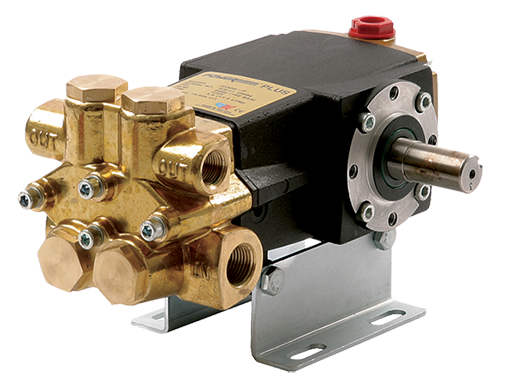

Pentair Hypro 2200B-P Series Duplex Plunger Pumps
These PowerLine Plus, duplex plunger pumps, achieve up to 3.0 gpm (11.4 lpm) and 2000 psi (138 bar). This series includes base models 2220B-P, 2221B-P, 2230B-P and 2231B-P.
- Ball bearings: Longer lasting drive system with heavy duty ball bearings
- Seals: Heavy-duty oil seals
- Bases: Standard; C3 retrofit bases match Cat 310 and 5CP base footprints
Specifications
Product:
Duplex Plunger Pump
| Item # | Max GPM | Max PSI | Max RPM | Inlet Port | Outlet Port |
|---|---|---|---|---|---|
| 2220B-P | 2.1 | 2000 | 1725 | 1/2" | 3/8" |
| 2221B-P | 2.1 | 1500 | 3450 | 1/2" | 3/8" |
| 2230B-P | 3.0 | 2000 | 1725 | 1/2" | 3/8" |
| 2231B-P | 3.0 | 1500 | 3450 | 1/2" | 3/8" |
| 2220B-HP | 2.1 | 2000 | 1725 | 1/2" | 3/8" |
| 2221B-HP | 2.1 | 1500 | 3450 | 1/2" | 3/8" |
| 2230B-HP | 3.0 | 2000 | 1725 | 1/2" | 3/8" |
| 2231B-HP | 3.0 | 1500 | 3450 | 1/2" | 3/8" |
| 2220B-AP | 2.1 | 2000 | 1725 | 1/2" | 3/8" |
| 2221B-AP | 2.1 | 1500 | 3450 | 1/2" | 3/8" |
| Item # | Max GPM | Max PSI | Max RPM | Inlet Port | Outlet Port |
|---|---|---|---|---|---|
| 2220B-P | 2.1 | 2000 | 1725 | 1/2" | 3/8" |
| 2221B-P | 2.1 | 1500 | 3450 | 1/2" | 3/8" |
| 2230B-P | 3.0 | 2000 | 1725 | 1/2" | 3/8" |
| 2231B-P | 3.0 | 1500 | 3450 | 1/2" | 3/8" |
| 2220B-HP | 2.1 | 2000 | 1725 | 1/2" | 3/8" |
| 2221B-HP | 2.1 | 1500 | 3450 | 1/2" | 3/8" |
| 2230B-HP | 3.0 | 2000 | 1725 | 1/2" | 3/8" |
| 2231B-HP | 3.0 | 1500 | 3450 | 1/2" | 3/8" |
| 2220B-AP | 2.1 | 2000 | 1725 | 1/2" | 3/8" |
| 2221B-AP | 2.1 | 1500 | 3450 | 1/2" | 3/8" |
| 2230B-AP | 3.0 | 2000 | 1725 | 1/2" | 3/8" |
| 2231B-AP | 3.0 | 1500 | 3450 | 1/2" | 3/8" |
| 2231B-CP | 3.0 | 1500 | 3450 | 1/2" | 3/8" |
