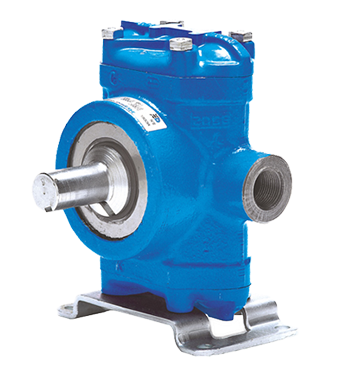

Pentair Hypro 5210C 5210C-H Series Big Twin Piston Pumps

These twin piston pumps achieve up to 10 gpm (37.9 lpm) and 400 psi (27.6 bar). This series includes models 5210C and 5210C-H.

  • Shaft size: 1" O.D. solid shaft or 1-3/8" I.D. hollow shaft
  • Pump shaft rotation: bi-rotational
  • Cups: Leather standard (fabric-reinforced and Buna-N available)
  • Recommended to be used with a Model 3375-0003 surge tank
Find out where to purchase online or in a retail location near you.
Where to Buy

Specifications

Pump Type: Piston and Plunger
Ports: 3/4" inlet, 3/4" outlet
Max Fluid Temperature: 140°F/60°C
WEIGHT: 18 lbs./8.2 kg
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
5210C1037.540027.66001" Solid shaft w/ base
5210C-H1037.540027.66001-3/8" Hollow shaft w/base
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
5210C1037.540027.66001" Solid shaft w/ base
5210C-H1037.540027.66001-3/8" Hollow shaft w/base
