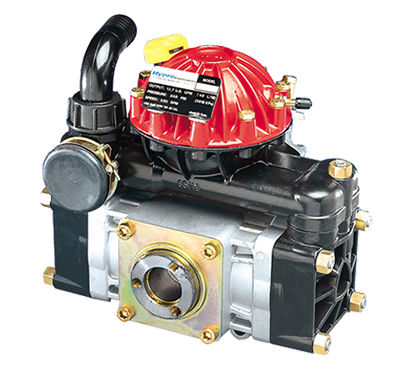

Pentair Hypro 9910-D50 Series Diaphragm Pumps
Pentair Hypro 9910-D50 Series Diaphragm Pumps
Discontinued
These 2 diaphragm, medium pressure, epoxy-coated pumps achieve up to 14.8 gpm (56 lpm) and 580 psi (40 bar). Pressure and output are designed for optimum performance of small to medium-sized sprayers. Pentair Hypro medium pressure diaphragm pumps can be adapted for male 1-3/8" splined shaft, female 1-3/8" splined shaft, 1" solid shaft, or gear reduction drive options.
- Shaft: flanged for shaft kit (D50); flange w/1" shaft ext. (D50AP-A)
- Diaphragms: 2, full-hydraulic, Desmopan® standard,Buna available (D50-B has Buna diaphragms)
- Pump shaft rotation: CW and CCW
- Recommended control unit: 9910-GS40GI
Specifications
Pump Type:
Diaphragm
Housing Material:
Epoxy-coated
Ports:
1-1⁄2" inlet, 1" outlet, hose barb
| Item # | Max GPM | Max LPM | Max BAR | Max PSI | Max RPM |
|---|---|---|---|---|---|
| 9910-D50 | 14.8 | 5.0 | 40 | 580 | 550 |
| 9910-D50-B | 14.8 | 56.0 | 40 | 580 | 550 |
| 9910-D50AP-A | 14.8 | 56.0 | 40 | 580 | 550 |
| Item # | Max GPM | Max LPM | Max BAR | Max PSI | Max RPM |
|---|---|---|---|---|---|
| 9910-D50 | 14.8 | 5.0 | 40 | 580 | 550 |
| 9910-D50-B | 14.8 | 56.0 | 40 | 580 | 550 |
| 9910-D50AP-A | 14.8 | 56.0 | 40 | 580 | 550 |
