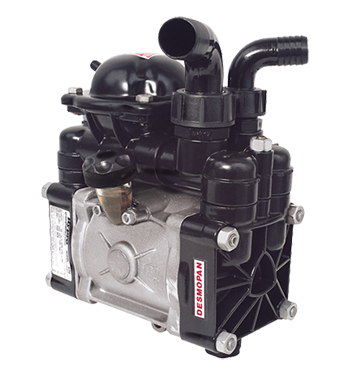

Pentair Hypro 9910-D70 Series Diaphragm Pumps
Pentair Hypro 9910-D70 Series Diaphragm Pumps
These 2 diaphragm, low pressure, epoxy-coated pumps achieve up to 19.6 gpm (74.2 lpm) and 290 psi (20 bar).
- Recommended for ground and low-level spraying of herbicides, pesticides, liquid fertilizers and many other hard-to-handle fluids.
- Can be adapted for splined shaft, hollow shaft, and solid shaft drive options.
Specifications
Max Fluid Temperature:
140°F/60°C
PORT SIZES:
1-1⁄4" HB inlet, 1" HB outlet
Diaphragm:
2, semi-hydraulic
Housing Components For Liquid Handling:
epoxy-coated
Pump Shaft Rotation:
CW and CCW
| Item # | Max GPM | Pump Type | Drive Type | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| 9910-D70 | 19.6 | Diaphragm | 74.2 | 290 | 20 | 550 | Select shaft kit for desired drive | 22 lbs./10 kg | |
| 9910-D70GR | 19.6 | Diaphragm | 74.2 | 290 | 20 | 3600 | 3⁄4" hollow shaft w/ gear reduction for 5 hp gas engine | 31 lbs./14 kg |
