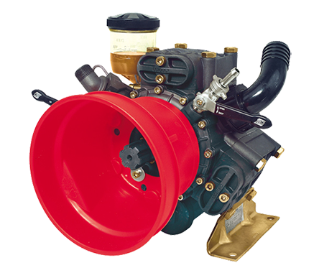

Pentair Hypro 9910-D813 Series Diaphragm Pumps
Pentair Hypro 9910-D813 Series Diaphragm Pumps
These 3 diaphragm, high pressure, anodized aluminum pumps achieve up to 20.8 gpm (78.7 lpm) and 725 psi (50 bar). Pentair Hypro high pressure diaphragm pumps are recommended for spraying of herbicides, pesticides, liquid fertilizers and many other hard to handle fluids. Low-cost maintenance and almost wear-free operation make these pumps ideal for a wide variety of spraying jobs.
- Shaft: Flanged adapter and 1-3/8"- 6 splined male shaft ext. (D813); 1" hollowshaft for gas engine mount (D813GRGI)
- Diaphragms: 3, semi-hydraulic, Desmopan® standard Buna available
- Mounting base: included
- Pump shaft rotation: CW and CCW
- Recommended control unit: 9910-VDR50 or 9910-GS50GI
Specifications
Pump Type:
Diaphragm
Housing Material:
Anodized aluminum
Max Fluid Temperature:
140°F/60°C
WEIGHT:
50 lbs./22.7 kg (D813); 66 lbs./30 kg (D813GRGI)
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Gearbox | Control Unit | Ports |
|---|---|---|---|---|---|---|---|---|---|
| 9910-D813 | 20.8 | 78.7 | 725 | 50 | 550 | 1-3⁄8"- 6 splined male shaft extension | - | - | 1-1/4" HB inlet, 3/4" NPT outlet |
| 9910-D813GRGI | 20.8 | 78.7 | 725 | 50 | 550 | - | 9910-KIT1642 | 9910-VDR50 | Assembled with gearbox 9910-KIT1642 and control 9910-VDR50 for mounting on 13 hp gas engine |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Gearbox | Control Unit | Ports |
|---|---|---|---|---|---|---|---|---|---|
| 9910-D813 | 20.8 | 78.7 | 725 | 50 | 550 | 1-3⁄8"- 6 splined male shaft extension | - | - | 1-1/4" HB inlet, 3/4" NPT outlet |
| 9910-D813GRGI | 20.8 | 78.7 | 725 | 50 | 550 | - | 9910-KIT1642 | 9910-VDR50 | Assembled with gearbox 9910-KIT1642 and control 9910-VDR50 for mounting on 13 hp gas engine |
