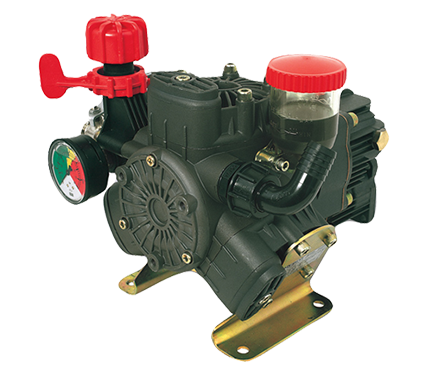

Pentair Hypro 9910-D403 Series Diaphragm Pumps

Specifications

Max Fluid Temperature: 140°F/60°C
Diaphragm: 3, semi-hydraulic
Housings: Anodized aluminum
Mounting Base: Included
Item #Max GPMMax LPMMax PSIMax BARMax RPMPortsGearboxControl UnitDriveProductShaftWEIGHT
9910-D4039.937.5580405501" HB inlet, 1⁄2" HB outlet---9910-D403 SeriesFlanged for kit attachment 23 lbs./10.4 kg
9910-D403GRGI9.937.558040550-9910-KIT16409910-GR40 For mounting on 5-6 hp gas engines9910-D403 Series 3⁄4" hollow shaft for gas engine mount 32 lbs./14.5 kg
Item #Max GPMMax LPMMax PSIMax BARMax RPMPortsGearboxControl UnitDriveProductShaftWEIGHT
9910-D4039.937.5580405501" HB inlet, 1⁄2" HB outlet---9910-D403 SeriesFlanged for kit attachment 23 lbs./10.4 kg
9910-D403GRGI9.937.558040550-9910-KIT16409910-GR40 For mounting on 5-6 hp gas engines9910-D403 Series 3⁄4" hollow shaft for gas engine mount 32 lbs./14.5 kg
