Pentair Hypro 9910-D1064 Series Diaphragm Pumps

Main Content Starts Here

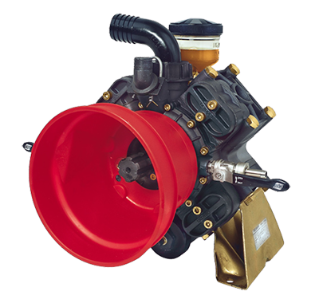

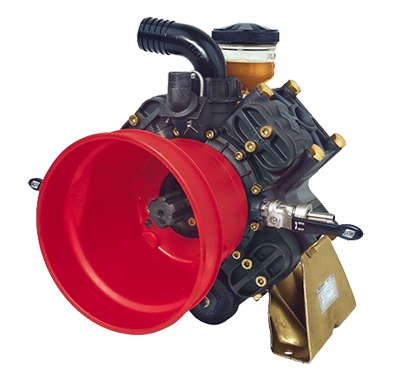

Pentair Hypro 9910-D1064 Series Diaphragm Pumps

This product has been discontinued and replaced by Pentair Hypro High Operating Pressure Diaphragm Pumps.

These 4 diaphragm, anodized aluminum pumps achieve up to 28.7 gpm (108.6 lpm) and 725 psi (50 bar).

  • Shaft: Flanged adapter and 1-3/8"- 6 splined male shaft ext. (D1064); 1" hollowshaft for gas engine mount (D1064GRGI)
  • Diaphragms: 4, semi-hydraulic, Desmopan® standard, Buna available
  • Mounting base: included
  • Pump shaft rotation: CW and CCW
  • Recommended control unit: 9910-VDR50 or 9910-GS50GI
Find out where to purchase online or in a retail location near you.

Specifications

Pump Type: Diaphragm
Housing Material: Anodized aluminum
Max Fluid Temperature: 140°F/60°C
WEIGHT: 54 lbs./24.5 kg (D1064); 76 lbs./34.5 kg (D1064GRGI)
Item #Max GPMMax LPMMax PSIMax BARMax RPMPort SizesShaft OutputGearboxControl UnitDrive
9910-D106428.7108.6725505501-1⁄4" HB inlet, 3⁄4" NPT outlet1-3⁄8"- 6 splined male shaft extension---
9910-D1064GRGI28.7108.6725503600--9910-KIT16429910-VDR50for mounting on 18 hp gas engine
Item #Max GPMMax LPMMax PSIMax BARMax RPMPort SizesShaft OutputGearboxControl UnitDrive
9910-D106428.7108.6725505501-1⁄4" HB inlet, 3⁄4" NPT outlet1-3⁄8"- 6 splined male shaft extension---
9910-D1064GRGI28.7108.6725503600--9910-KIT16429910-VDR50for mounting on 18 hp gas engine
