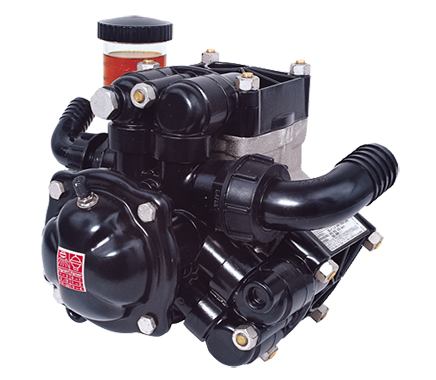

Pentair Hypro 9910-D115 Series Diaphragm Pumps
Pentair Hypro 9910-D115 Series Diaphragm Pumps
Discontinued
This product has been discontinued and replaced by Pentair Hypro Low Operating Poly Pressure Diaphragm Pumps.
These 3 diaphragm, low pressure, epoxy-coated pumps achieve up to 28.6 gpm (108.3 lpm) and 290 psi (20 bar).
- Max. fluid temperature: 140°F/60°C
- Diaphragms: 3, semi-hydraulic, Desmopan ® standard, Buna available
- Pump shaft rotation: CW and CCW
- Recommended control unit: 3300-0087 or 3300-0088
Specifications
Pump Type:
Diaphragm
Housing Material:
Epoxy-coated
Ports:
1-1⁄2" inlet, 1" outlet, hose barb
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output |
|---|---|---|---|---|---|---|
| 9910-D115 | 28.6 | 108.3 | 290 | 20 | 550 | Select shaft kit for desired drive |
| 9919-D115GR34 | 28.6 | 108.3 | 290 | 20 | 3600 | 3⁄4" hollow shaft w/ gear reduction for 5 hp gas engine |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output |
|---|---|---|---|---|---|---|
| 9910-D115 | 28.6 | 108.3 | 290 | 20 | 550 | Select shaft kit for desired drive |
| 9919-D115GR34 | 28.6 | 108.3 | 290 | 20 | 3600 | 3⁄4" hollow shaft w/ gear reduction for 5 hp gas engine |
