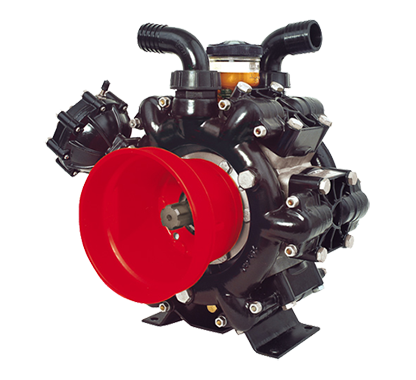

Pentair Hypro 9910-D250 Series Diaphragm Pumps

This low pressure, epoxy coated 6 diaphragm pump achieves a max of 65.7 gpm (248.7 lpm) and a max of 290 psi (20 bar).

  • Mounting base: included
  • Pump shaft rotation: CW and CCW
  •  Recommended control unit: 3300-0082
Find out where to purchase online or in a retail location near you.

Specifications

Max Fluid Temperature: 140°F/60°C
PORT SIZES: 2" inlet, 1-1⁄2" outlet, hose barb
Diaphragm: 6, semi-hydraulic
Housing Components For Liquid Handling: Epoxy-coated
Mounting Base: Included
Pump Shaft Rotation: CW and CCW
Control Unit: 3300-0082
WEIGHT: 92 lbs./41.7 kg
Ports: 2" inlet, 1-1/2" outlet, hose barb
Max Fluid Temperature: 140°F/60°C
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
9910-D25065.7248.7290205501-3⁄8"- 6 splined male shaft
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
9910-D25065.7248.7290205501-3⁄8"- 6 splined male shaft
