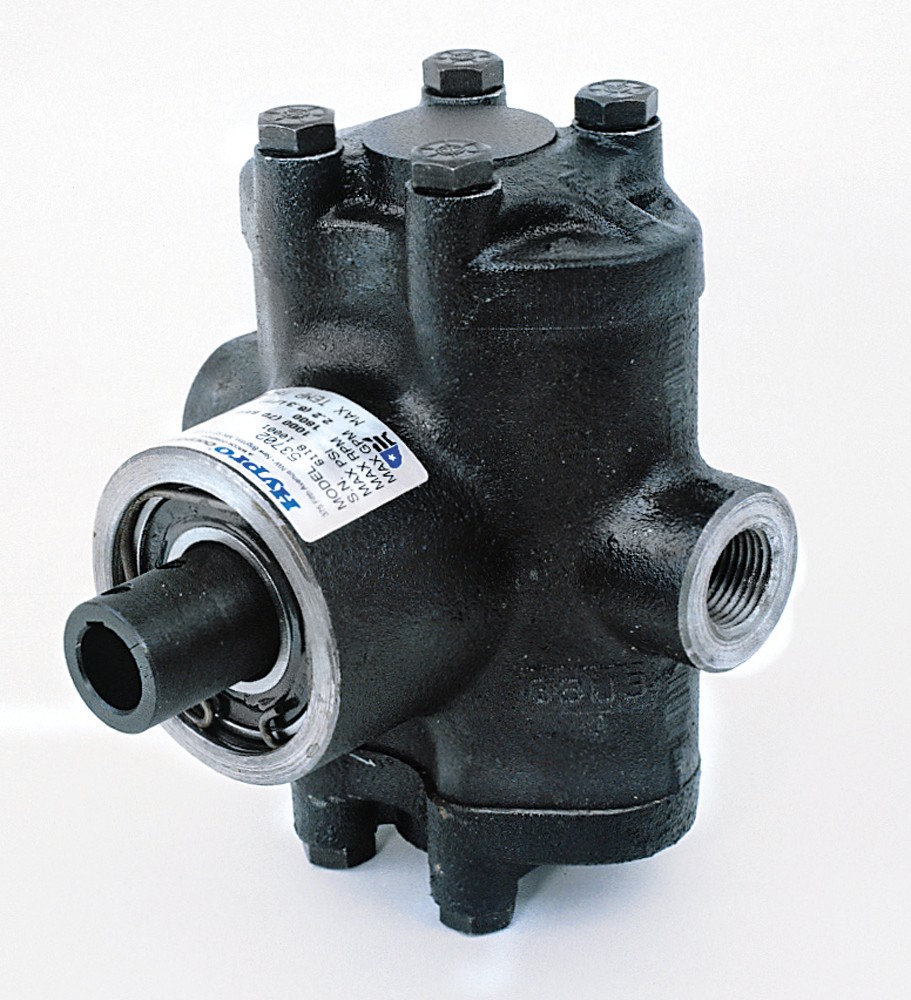

Pentair Hypro Model 53703 Small Pump

  • Pump shaft rotation: bi-rotational
  • Plungers: polished ceramic
  • Model 53703 requires a pulsation dampener (such as a 3375-0012 pulse hose)on the discharge side
  • Inlet requirements: pressure feed 20-100 psi (1.3 - 6.9 bar)
Find out where to purchase online or in a retail location near you.
Where to Buy

Specifications

Pump Type: Piston and Plunger
Max Fluid Temperature: 180°F/82°C
Ports: 1/2" inlet, 1/2" outlet
WEIGHT: 10 lbs./4.5 kg
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
537032.38.7100068.931005/8" ID hollow shaft
Item #Max GPMMax LPMMax PSIMax BARMax RPMShaft Output
537032.38.7100068.931005/8" ID hollow shaft
