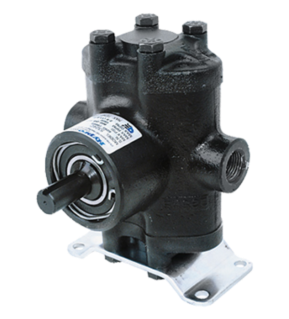

Pentair Hypro 5321C 5322C 5321C-H 5322C-H Series
Pentair Hypro 5321C 5322C 5321C-H 5322C-H Series
- Pump shaft rotation: bi-rotational
- Injector head available 3396-0006
- Models 5321 and 5322 require a pulsation dampener(such as a 3375-0012 pulse hose) on the discharge side
Specifications
Product:
Small Twin
Max Fluid Temperature:
180°F/82°C
Ports:
1/2" inlet, 1/2" outlet
Pump Type:
Piston and Plunger
WEIGHT:
10 lbs./4.5 kg
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Material |
|---|---|---|---|---|---|---|---|
| 5321C | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" OD solid shaft | Stainless Steel Plunger |
| 5322C | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" OD solid shaft | Ceramic Plunger |
| 5321C-H | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" ID hollow shaft | Stainless Steel Plunger |
| 5322C-H | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" ID hollow shaft | Ceramic Plunger |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Shaft Output | Material |
|---|---|---|---|---|---|---|---|
| 5321C | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" OD solid shaft | Stainless Steel Plunger |
| 5322C | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" OD solid shaft | Ceramic Plunger |
| 5321C-H | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" ID hollow shaft | Stainless Steel Plunger |
| 5322C-H | 2.2 | 8.3 | 1000 | 68.9 | 1800 | 5/8" ID hollow shaft | Ceramic Plunger |
