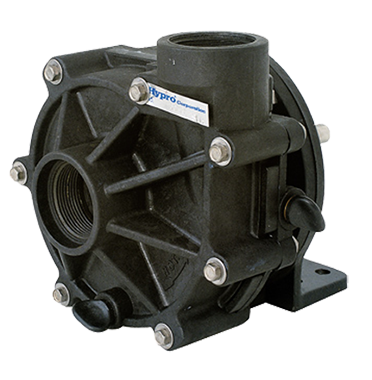

Pentair Hypro 9940-9750NRL Series Centrifugal Pumps
Pentair Hypro 9940-9750NRL Series Centrifugal Pumps
These electric-driven, Noryl centrifugal pumps achieve a max of 140 gpm (530 lpm) and a max of 39 psi (2.7 bar). The 9940-9700NRL series pumps are specifically designed for bulk transfer of fertilizer and agricultural chemicals. The pumps have centrifugal force impellers for quiet, efficient pumping action.
- Impeller: Noryl
- Shaft Seals: Viton/Ceramic with Polypropylene case
Specifications
Product:
Electric-Driven Centrifugal Pumps - Noryl
Pump Type:
Specialty
Max Fluid Temperature:
140°F/60°C
Ports:
1-1/2" NPT inlet 1-1/2" NPT outlet
Seal Material:
Viton®/ceramic with polypropylene case
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Housing Material | WEIGHT | Drive Type | IMPELLER MATERIAL |
|---|---|---|---|---|---|---|---|---|---|
| 9940-9750NRL | 140 | 530 | 39 | 2.7 | 3600 | Noryl (chemical-resistant, coated, cast iron bearing housing) | 12 lbs./5.4 kg | Noryl, pedestal mount, direct drive | |
| 9940-9751NRL | 47 | 178 | 30 | 2.1 | 3450 | Noryl | 34 lbs./15.4 kg | Noryl, close-coupled, AC motordriven (60 Hz), centrifugal pump | |
| 9940-9753NRL | 91 | 344 | 35 | 2.4 | 3450 | Noryl | 39 lbs./17.7 kg |
| Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max RPM | Housing Material | WEIGHT | Drive Type | IMPELLER MATERIAL |
|---|---|---|---|---|---|---|---|---|---|
| 9940-9750NRL | 140 | 530 | 39 | 2.7 | 3600 | Noryl (chemical-resistant, coated, cast iron bearing housing) | 12 lbs./5.4 kg | Noryl, pedestal mount, direct drive | |
| 9940-9751NRL | 47 | 178 | 30 | 2.1 | 3450 | Noryl | 34 lbs./15.4 kg | Noryl, close-coupled, AC motordriven (60 Hz), centrifugal pump | |
| 9940-9753NRL | 91 | 344 | 35 | 2.4 | 3450 | Noryl | 39 lbs./17.7 kg |
