Pentair Hypro 9308C Series
Main Content Starts Here
Pentair Hypro 9308C Series

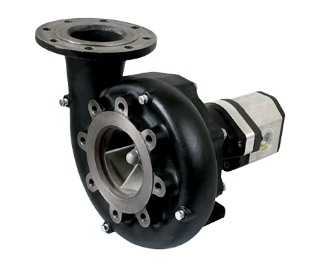

The 9308 series hydraulically-driven, cast iron centrifugal pump achieves a max of 1078 gpm (4081 lpm) and max of 72 psi (5.0 bar).
- 316 stainless steel impeller for superior corrosion resistance
- 9308 versions include a two-piece shaft design with a 416 stainless steel wet end and hardened 8620 drive end for extended life
- Life Guard silicon carbide seal for premium abrasion resistance and dry-run protection
- Life Guard seals are the industry standard on OEM equipment
Specifications
Pump Type:
Centrifugal
Drive Type:
Hydraulic
Housing Material:
Cast Iron
Ports:
5" x 4" ANSI-flanged
Seal Material:
Life Guard Silicon Carbide
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max Hydraulic GPM | Max Hydraulic LPM | Hydraulic Selection System |
---|---|---|---|---|---|---|---|
9308C-PM15 | 900 | 3407 | 58 | 4.0 | 16 | 60.6 | Open/Closed |
9308C-GM25 | 1078 | 4081 | 72 | 5.0 | 28 | 106 | Open/Closed |
Item # | Max GPM | Max LPM | Max PSI | Max BAR | Max Hydraulic GPM | Max Hydraulic LPM | Hydraulic Selection System |
---|---|---|---|---|---|---|---|
9308C-PM15 | 900 | 3407 | 58 | 4.0 | 16 | 60.6 | Open/Closed |
9308C-GM25 | 1078 | 4081 | 72 | 5.0 | 28 | 106 | Open/Closed |
