Four Hard-working Cartridges Keep Pool Water Clear

Clean & Clear Plus Cartridge Pool Filters have a corrosion-resistant, injection-molded, fiberglass-reinforced, polypropylene filter tank featuring superior strength and reliability. The cartridge assembly uses four, nonwoven, polyester cartridges. There is no need for backwashing. Simply remove the cartridges and rinse with a garden hose, reducing water consumption.

Large filter area for increased dirt capacity
100% drain clean-out port
Continuous High Flow™ Internal Air Relief*
Durable injection-molded tank
Balanced hydraulic flow

Find out where to purchase online or in a retail location near you.

VIEW ITEMS

Product Components

Clamp ring for easy and quick access to cartridges
Single-piece fiberglass-reinforced polypropylene tank for strength and corrosion resistance
2" plumbing for maximum flow and faster water cleaning
Easy access 1" drain makes proper winterization fast and simple

Easy To Maintain

The fiberglass-reinforced tank halves are secured with an innovative clamp ring—just loosen the ring and remove the top half for easy cartridge access and rinsing. Filter maintenance doesn’t get any easier.

Four-Cartridge Design

The Clean & Clear Plus filter’s design provides maximum filter surface area to capture more dirt and solids and stretch out time between cleanings. Plus, we use the most durable materials to extend cartridge life. The Clean & Clear Plus filter delivers commercial-grade performance that keeps pools clean and sparkling, day in and day out.

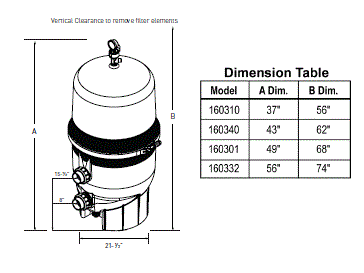

Dimensions

Clean n Clear Plus Cartridge Dimensional Drawing

Homeowner and Pro Resources

Brochures

Manuals

Replacement Parts

Clean and Clear Plus Owners Manual English

Clean Clear Plus Filters

Support

Specifications

Item #	Model	Effective Filtration Area (Sq Ft)	Flow Rate (GPM Res)	8 Hour	10 Hour	12 Hour	Carton Qty.	Carton Wt. (Lbs.)
160310	CCP240	240	90	43,200	54,000	64,800	1	60
160340	CCP320	320	120	57,600	72,000	86,400	1	70
160301	CCP420	420	150	72,000	90,000	108,000	1	80
160332	CCP520	520	150	72,000	90,000	108,000	1	90
EC-160301	CCP420, Ecommerce	420	150	72,000	90,000	108,000	1	80
EC-160332	CCP520, Ecommerce	520	150	72,000	90,000	108,000	1	90
EC-160340	CCP320, Ecommerce	320	120	57,600	72,000	86,400	1	70

Item #	Model	Effective Filtration Area (Sq Ft)	Flow Rate (GPM Res)	8 Hour	10 Hour	12 Hour	Carton Qty.	Carton Wt. (Lbs.)
160310	CCP240	240	90	43,200	54,000	64,800	1	60
160340	CCP320	320	120	57,600	72,000	86,400	1	70
160301	CCP420	420	150	72,000	90,000	108,000	1	80
160332	CCP520	520	150	72,000	90,000	108,000	1	90
EC-160301	CCP420, Ecommerce	420	150	72,000	90,000	108,000	1	80
EC-160332	CCP520, Ecommerce	520	150	72,000	90,000	108,000	1	90
EC-160340	CCP320, Ecommerce	320	120	57,600	72,000	86,400	1	70

Show less

Item #	Model	Effective Filtration Area (Sq Ft)	Flow Rate (GPM Res)	8 Hour	10 Hour	12 Hour	Carton Qty.	Carton Wt. (Lbs.)
160310	CCP240	240	90	43,200	54,000	64,800	1	60
160340	CCP320	320	120	57,600	72,000	86,400	1	70
160301	CCP420	420	150	72,000	90,000	108,000	1	80
160332	CCP520	520	150	72,000	90,000	108,000	1	90
EC-160301	CCP420, Ecommerce	420	150	72,000	90,000	108,000	1	80
EC-160332	CCP520, Ecommerce	520	150	72,000	90,000	108,000	1	90
EC-160340	CCP320, Ecommerce	320	120	57,600	72,000	86,400	1	70

Show less

Certified to NSF/ANSI 50

Flow Rate: Residential rate one GPM per sq. ft. of filter area.

Flow Rate: Commercial rate is a maximum of .375 GPM sq. ft. of filter area.

Products beginning with EC- are exclusive to e-commerce sales. For warranty information please visit www.pentair.com/warranty.

Note: Actual system flow will depend on plumbing size and other system components.

Note: Pentair Aquatic Systems does not recommend flow rates above 150 GPM.

*Integrated Continuous High Flow Internal Air Relief is operational only when there is unobstructed flow in the circulating system.

Operating limits—Maximum continual operating pressure of 50 psi. Pool/spa (bather) applications, maximum operating water temperature (internal filter) 104° F (40° C).

*Pentair has a trained team of TradeGrade experts and third-party resources that will be scouring the internet 24/7 for TradeGrade violations. Our guarantee to you is that we will use all resources at our disposal to actively monitor and enforce this policy.If a TradeGrade product is sold online, the warranty will be limited to a 60-day limited warranty. Pentair will not be liable for any costs or expenses related to an extended warranty provided to a customer beyond the 60-day limited warranty that Pentair provides for such sales. Additionally, no PIP dollars will be rewarded to the dealer for the purchase. When a TradeGrade product is purchased and sold in compliance with the TradeGrade policy, that product will receive the full product warranty.
