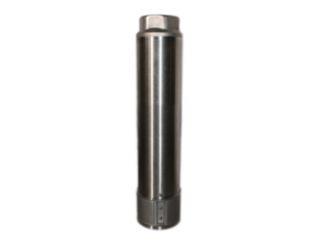

Pentair Berkeley 6TSP Submersible Turbine Pumps

The 6TSP series pumps feature abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions. Components are 100% lead-free, and meet all U.S. federal guidelines for safe drinking water.

  • Discharge - stainless steel investment cast, 3 FNPT Features 6 extra wide wrench flats for a secure grip when tightening to the drop pipe.
  • Standard Check valve - The poppet-style check valve helps protect the pump against backflow. The check valve can be easily removed if not required.
  • Shaft and bearing assembly - A ceramic upper bearing guide combined with a cutless rubber bearing protects the shaft from premature wear.
  • Impellers and diffusers - Noryl - Smooth and efficient performance, and superior sand handling.
  • Wear rings - 304 Minimizes re-circulation for increased pump performance and longevity.
  • Pump sleeve - stainless steel - Provides superior corrosion resistance when the pump is installed in harsh environments.
  • Lead guard - Easy installation, and protects the motor leads across the full length of the pump.
  • Suction bracket - stainless steel - Machined for both 4 and 6 motor registers. Bolt kits included for either motor size where appropriate.
  • Suction screen - Form fitted, provides corrosion resistance, and prevents particulates larger than 0.10 from entering the pump.
  • Motor Coupling - Designed to effectively divert debris away from the spline engagement area to maximize durability.
Find out where to purchase online or in a retail location near you.
Where to Buy

Specifications

Item #UPPER GUIDE BEARINGIMPELLERS & DIFFUSERSWEAR RINGSShaftMOTOR COUPLINGDISCHARGE CHECK VALVE LEAD GUARD SUCTION BRACKET SUCTION SCREENPrimary Product AttributesPrimary Product Attributes
6TSP
Item #UPPER GUIDE BEARINGIMPELLERS & DIFFUSERSWEAR RINGSShaftMOTOR COUPLINGDISCHARGE CHECK VALVE LEAD GUARD SUCTION BRACKET SUCTION SCREENPrimary Product AttributesPrimary Product Attributes
6TSP
