Pentair Hydromatic HWG(X)200

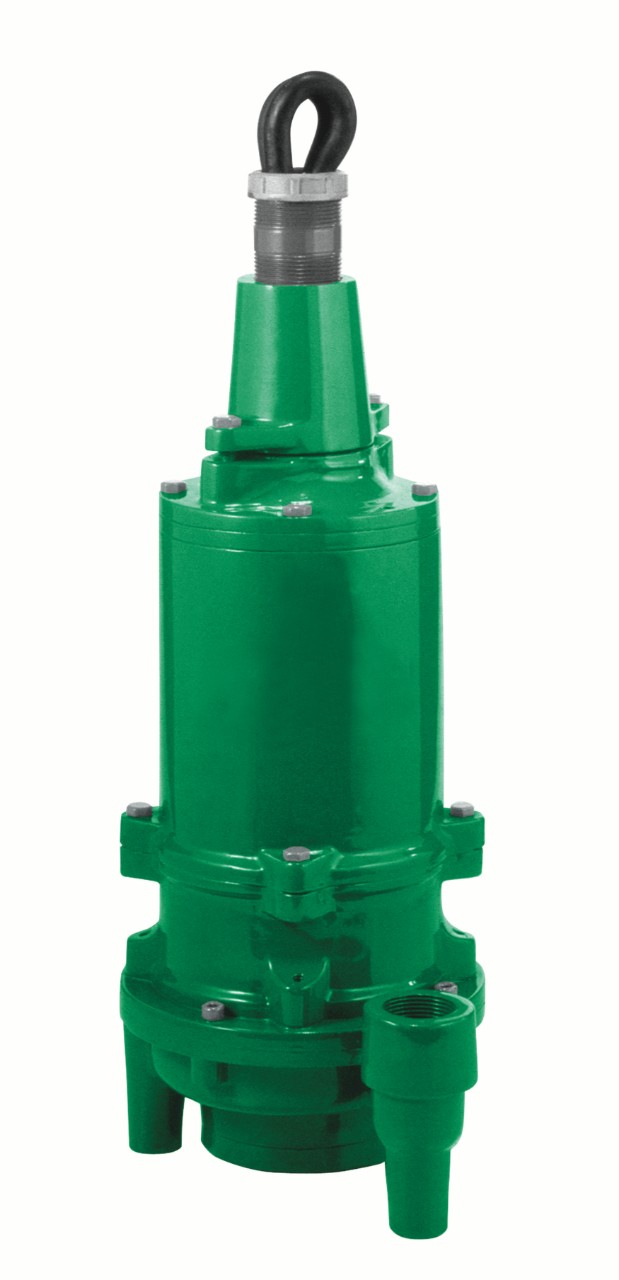

Pentair Hydromatic HWG(X)200 Series are rugged 2 HP submersible centrifugal grinder pumps designed for residential, light commercial, or industrial applications. It is especially suited for pressure sewer applications or systems with long discharge runs or high static heads.


Overview

  • Pressure to 98 feet of head and flows of 40 GPM.
  • Recessed impeller provides steep non-overloading operating curve and reduces radial bearing loads, increases bearing life
  • Oil-filled motor for max. heat dissipation and constant bearing lubrication
  • High torque capacitor starts single phase motor for assured starting under heavy load
  • Seal moisture sensor warns of leak conditions to help prevent costly motor damage
  • On-winding temperature-sensitive sensor
  • Shredding ring and grinding impeller are replaceable without dismantling pump or motor
  • Warranty - Note: Call for information
