- Pentair Pro Baitmaster™ II Livewell Pump
Brochures
Manuals
Installation and Operation Manual
Data and Replacement Parts

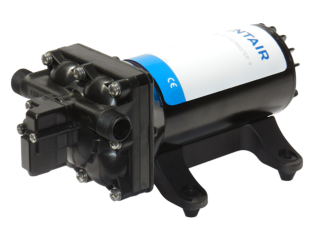

The Shurflo® PRO BAITMASTER™ II heavy duty livewell/washdown pump is excellent for live-well or washdown applications in harsh marine environments. The seamless motor shell and sealed switch protects the pump from splashed liquids. Self-priming and can run dry without damage. For tank size 35 gallons and under.
Item # | OEM MODEL # | Voltage | Flow Rate | Amps (Max) | Shut-Off Pressure |
---|---|---|---|---|---|
4648-153-E07 | 4648-163-A07 | 12 VDC | 4.0 GPM [15.1 LPM] | 8 | 45 PSI [3.1 BAR] |
4648-163-E07 | 4648-163-A07 | 24 VDC | 4.0 GPM [15.1 LPM] | 4 | 45 PSI [3.1 BAR] |
Item # | OEM MODEL # | Voltage | Flow Rate | Amps (Max) | Shut-Off Pressure |
---|---|---|---|---|---|
4648-153-E07 | 4648-163-A07 | 12 VDC | 4.0 GPM [15.1 LPM] | 8 | 45 PSI [3.1 BAR] |
4648-163-E07 | 4648-163-A07 | 24 VDC | 4.0 GPM [15.1 LPM] | 4 | 45 PSI [3.1 BAR] |
