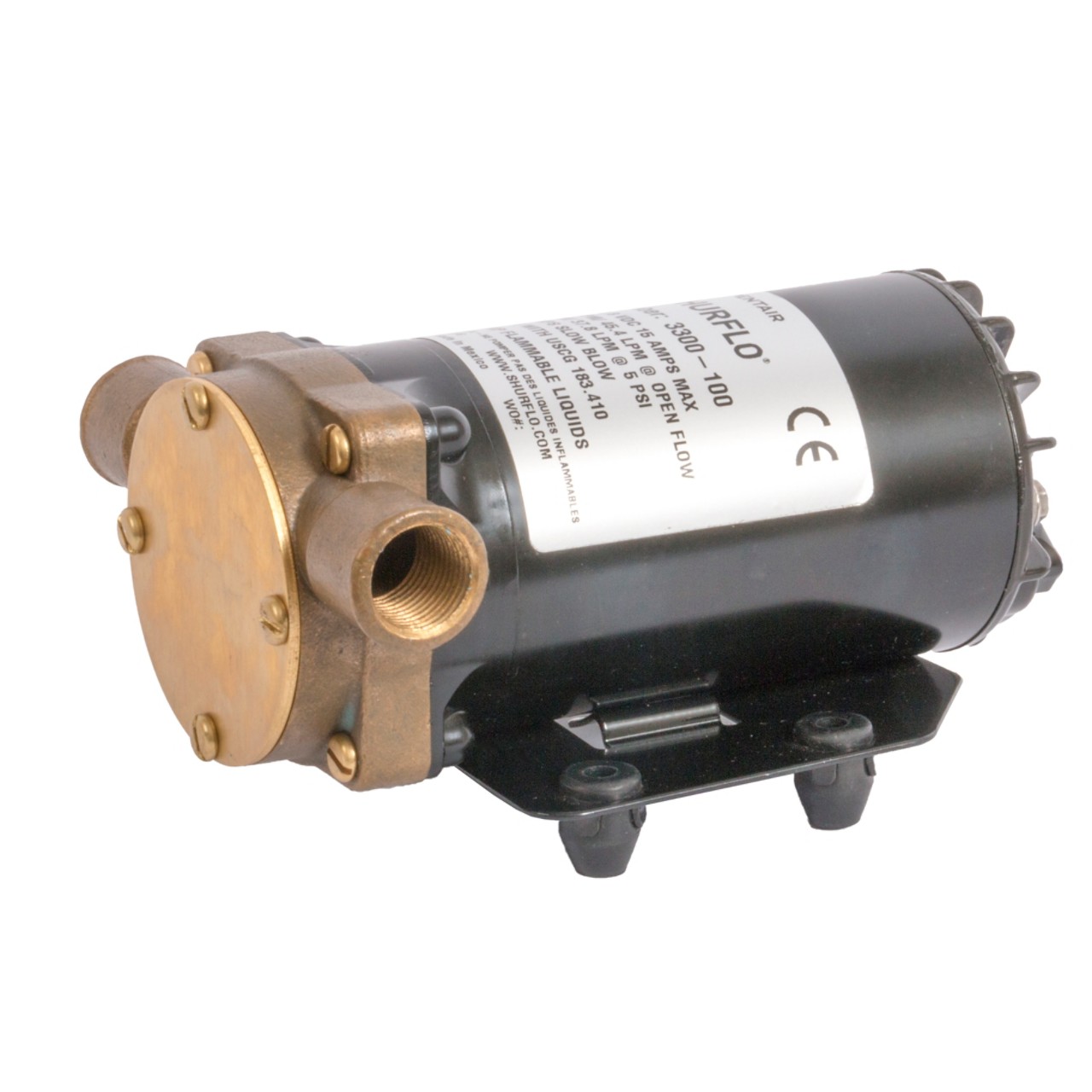

Pentair Shurflo Standard Ballast Pump

The Shurflo Standard Ballast Pump was specially designed and developed for high capacity ballast tank applications in ski and wake boats, providing rapid fill and drain rates in a readily adaptable configuration, able to operate on a 25 Amp circuit. The high efficiency, high torque motor in combination with a high modulus neoprene compound impeller provide fast priming, long life, and consistent performance. Close internal tolerances help reduce leak back when the pump is mounted below the ballast tank. The Standard Ballast is built on the latest Shurflo motor series which includes fully sealed heavy die cast end bells, electro-coat finish throughout, and a steel mounting plate for reliable performance and durability in engine compartment conditions.
  • 12 VDC Sealed Corrosion Resistant Electro-Coated Motor
  • 14 AWG Lead Wires
  • Reversible Flexible Impeller
  • Bronze Pump Body
  • Self-Primes up to 4 feet vertically
  • Ports: ½” Internal Pipe Threads,
  • 1” External Hose Barb
  • Ignition Protected
  • CE and IMCI certification
Find out where to purchase online or in a retail location near you.
Where to Buy

Specifications

DIMENSIONS: 6.62" X 4.75" X 3.61" [168 X 121 X 92mm]
Item #VoltageAmps (Max)PortsFlow Rate
3300-10112 VDC151/2" Internal Pipe Threads 1" External Hose Barb12 GPM [45.7 LPM]
Item #VoltageAmps (Max)PortsFlow Rate
3300-10112 VDC151/2" Internal Pipe Threads 1" External Hose Barb12 GPM [45.7 LPM]
