Fleck 3200NXT Controller
Main Content Starts Here
Discontinued

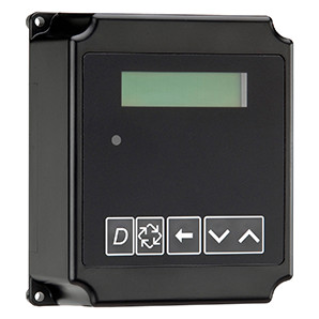

Fleck 3200NXT Controller
ADVANCED SYSTEM NETWORK CONTROLLER
The NXT Network Controller uses on-board communication capabilities to link multiple commercial valves (via off-the-shelf CAT3, CAT5, or better cables) for a variety of system types.
For Valves:
- 2750
- 2850S
- 2850
- 2900S
- 3150
- 3900
- 7000 (excludes system 14)
Features and Benefits
- On-screen multilingual support: English, French, German, Portuguese, Spanish
- Time of day super capacitor backup for power loss
- 2 line/ 16 character full text LCD backlit display
- Left arrow button allows digit selecting in programming mode
- Networks two to four valves via off-the-shelf CAT3, CAT5, or better cables
- Field-configurable for all system types
- LED Status indicator:
- Blue: In Service
- Flashing Blue: Regeneration Queued
- Green: Regeneration
- Flashing Green: Standby
- Red: Error with codes
- Auxillary inputs and outputs:
- Programmable relay output
- Programmable chemical pump output
- Remote lockout and regen input
- Easy Installation with plug-in wiring harnesses
- Easy electronic programming
- Diagnostics:
- Current Flow Rate
- Peak Flow Rate (can be reset)
- Totalizer (can be reset)
- Hours Between Last Two Regenerations
- Hours Since Last Regeneration
- Volume Remaining (adjustable)
- Valve Address
- Software Version
Specifications
REGENERATION TYPE
- Meter Delayed Fixed Reserve
- Meter Immediate
- Remote Signal Start Immediate
- Time Clock Delayed
REGENERATION FLOW
- Downflow
- Upflow Fill First
- Upflow Brine First
ELECTRICAL RATING
- 24V Transformers:
- 115V AC +/- 20% input, 24V AC output
- 230V AC +/- 20% input, 24V AC output
GENERIC METER GUIDELINES
- Open collector output
- Pulse rate generated must not exceed 100 pulses per second (100Hz) or 6,000 pulses per minute
- Support for meter outputs in the range of 1-255 gallons (25.5m3) for every 1-255 pulses
- Meter must operate at 5 VDC
