OMNIFILTER WH5 Standard Filter Housing

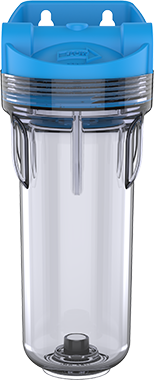

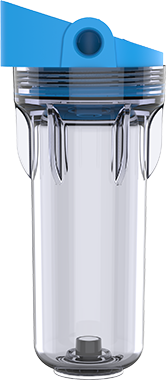

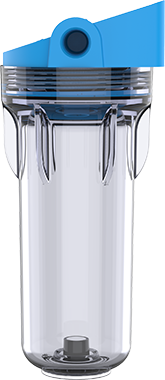

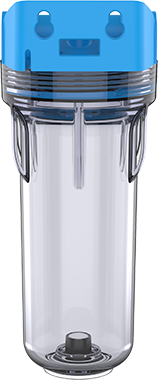

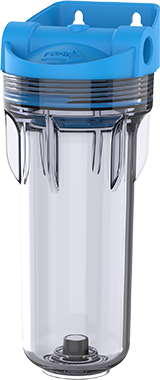

WH5 OMNIFilter Standard housings feature integral mounting bracket and clear housing. WH5 integral mounting bracket caps are manufactured from durable polypropylene and the clear housings is manufactured from Styrene-Acrylonitrile (SAN). Clear housings offer on-site examination of the cartridge and have excellent chemical compatibility. Equipped with 3/4" NPT inlet and outlet ports are available in Standard 10" lengths and will accommodate a wide range of 2-1/4" to 3-1/8" diameter cartridges.
- 10" Standard size clear whole house filter housing for average size homes
- Protects appliances so they operate more efficiently, saving money and energy
- Clear housing allows you to see your filter working and helps to determine when to change your filter
- For whole-house applications with 3/4" FIP threaded connection

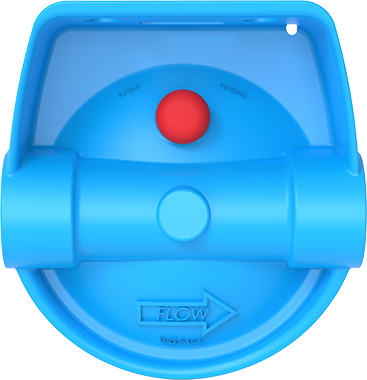

- Reinforced polypropylene molded mounting bracket cap
- Cartridge sold separately so you can customize your unit to meet your filtration needs
- Choose from a wide range of OMNIFILTER whole house cartridges
- Fits average homes and 3/4" piping

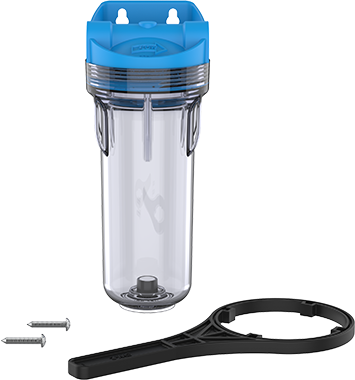

- Includes whole-house housing with bracket mounting cap, housing wrench, mounting screws and installation manual
- 5-year warranty
Specifications
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| WH5-S-S18 | 10" standard clear sump housing | 3/4" | Female NPT |
| Item # | Description | Inlet Size | Inlet Connection Type |
|---|---|---|---|
| WH5-S-S18 | 10" standard clear sump housing | 3/4" | Female NPT |
