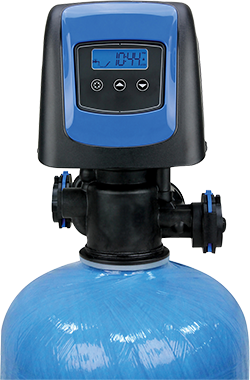

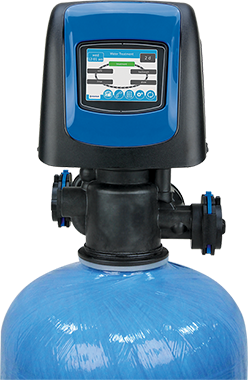

Fleck 5810 Valve

With a 36 GPM service flow rate and connection options ranging in size from ¾” and 1-1/4”, the 5810 valve is a perfect fit for mid-sized applications.

This product is manufactured in the United States of foreign and domestic parts.

Features and Benefits:

• Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
• Continuous service flow rate of 36 GPM with a backwash of 28 GPM
• Backwash capability accommodates softener tanks and filters up to 21" in diameter
• Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
• Time-tested, hydraulically-balanced piston for service and regeneration
• Optical sensor for precision cycle positioning
• Soft water refill for a cleaner brine tank
• Designed with double backwash for reduced hardness leakage
• Diagnostics for historical valve performance
• Programming stored in memory and will not be lost due to
  power outages

Accessories and Options:

• Filter or softener control valves
• Downflow co-current or upflow counter-current regeneration
• Plumbing connections in 3/4" to 1-1/4" NPT, BSP, and sweat
• Fiber-reinforced polymer high-flow bypass valve
• Variable reserve for increased efficiency
• Programmable regeneration types for increased flexibility
• Three color bezel options of black, silver, and blue
