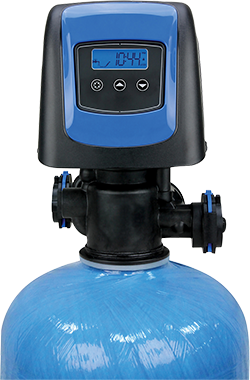

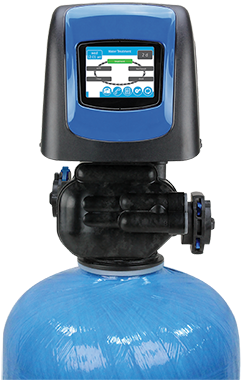

Fleck 5812 Valve

The 5812 valve boasts the largest capacity in the series, with a 36 GPM service flow rate and connection options ranging in size from ¾” to 1-1/2”.

This product is manufactured in the United States of foreign and domestic parts.

Features and Benefits:

  • Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
  • Continuous service flow rate of 43 GPM with a backwash of 33 GPM
  • Backwash capability accommodates softener tanks and filters up to 24" in diameter
  • Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
  • Time-tested, hydraulically-balanced piston for service and regeneration
  • Optical sensor for precision cycle positioning
  • Soft water refill for a cleaner brine tank
  • Designed with double backwash for reduced hardness leakage
  • Diagnostics for historical valve performance
  • Programming stored in memory and will not be lost due to power outages

Accessories and Options:

  • Filter or softener control valves
  • Downflow co-current or upflow counter-current regeneration
  • Plumbing connections in 3/4", 1", 1-1/4", or 1-1/4" NPT, BSP, Sweat, and CPVC
  • Fiber-reinforced polymer high-flow bypass valve
  • Variable reserve for increased efficiency
  • Programmable regeneration types for increased flexibility
  • Three color bezel options of black, silver, and blue
Explore purchase options available for this product.
Where to Buy

The Fleck 5800 is recommended for 2.5" bases, and the Fleck 2850 or 2815 is recommended for 4" bases.

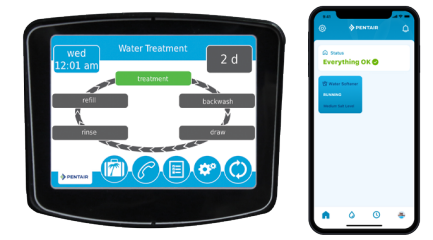

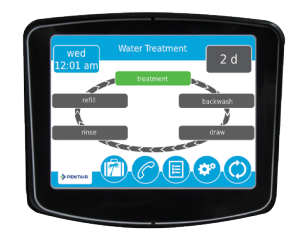

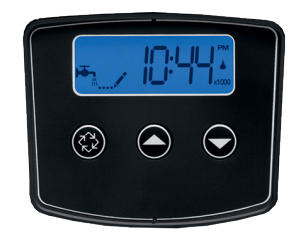

Controller Options

true

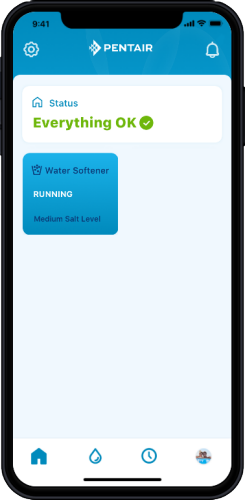

INFORMATION AT YOUR FINGERTIPS

Connected devices can help improve health, enhance our lives and help provide peace of mind. Why not be connected to something as essential to your family’s well-being as their water?

specifications

Item #ControllerDescription
581206-003SXT1.25" Integral Meter, Upflow Softener, U.S. Power Supply, #0 Injector, 0.25 GPM BLFC
581206-004SXT1.25" Integral Meter, Upflow Softener, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot, #1 Injector, 0.25 GPM BLFC
581206-001SXT1.25" Integral Meter, Downflow Softener, U.S. Power Supply, #2 Injector, 0.50 GPM BLFC
581206-002SXT1.25" Integral Meter, Downflow Softener, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC
581206-005SXTTime Clock B/W Filter, U.S. Power Supply
581206-006SXTTime Clock B/W Filter, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot
581206-007SXT1.25" Integral Meter, Downflow Softener, Int'l Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC, Blue Bezel
581206-011SXT1.25" Integral Meter, Downflow Softener, Int'l Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC, Silver Bezel
581206-012SXTTime Clock, Downflow Softener, Int'l Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC, Blue Bezel
581206-008SXTTime Clock B/W Filter, INT'L Power Supply, 4" Base, 1.9" OD Distributor Pilot, Blue Bezel
Item #ControllerDescription
581206-003SXT1.25" Integral Meter, Upflow Softener, U.S. Power Supply, #0 Injector, 0.25 GPM BLFC
581206-004SXT1.25" Integral Meter, Upflow Softener, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot, #1 Injector, 0.25 GPM BLFC
581206-001SXT1.25" Integral Meter, Downflow Softener, U.S. Power Supply, #2 Injector, 0.50 GPM BLFC
581206-002SXT1.25" Integral Meter, Downflow Softener, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC
581206-005SXTTime Clock B/W Filter, U.S. Power Supply
581206-006SXTTime Clock B/W Filter, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot
581206-007SXT1.25" Integral Meter, Downflow Softener, Int'l Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC, Blue Bezel
581206-011SXT1.25" Integral Meter, Downflow Softener, Int'l Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC, Silver Bezel
581206-012SXTTime Clock, Downflow Softener, Int'l Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC, Blue Bezel
581206-008SXTTime Clock B/W Filter, INT'L Power Supply, 4" Base, 1.9" OD Distributor Pilot, Blue Bezel
581206-010SXTTime Clock B/W Filter, INT'L Power Supply, 4" Base, 1.9" OD Distributor Pilot, Silver Bezel
581208-001XTR21.25" Integral Meter, Downflow Softener, U.S. Power Supply, #00 Injector, 0.125 GPM BLFC
581208-003XTR21.25" Integral Meter, Upflow Softener, U.S. Power Supply, #0 Injector, 0.25 GPM BLFC
581208-004XTR21.25" Integral Meter, Upflow Softener, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot, #1 Injector, 0.25 GPM BLFC
581208-002XTR21.25" Integral Meter, Downflow Softener, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 0.50 GPM BLFC
581208-005XTR2Time Clock B/W Filter, U.S. Power Supply
581208-006XTR2Time Clock B/W Filter, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot
581208-008XTR21.25" Integral Meter, Downflow Softener, Int'l Power Supply, 4" Base, 1.9" OD Distributor Pilot, #5 Injector, 1.0 GPM BLFC
581208-013XTR21.25" Integral Meter, Downflow Softener, Aus Power Supply, 4" Base, 1.9" OD Distributor Pilot, #3 Injector, 1.0 GPM BLFC
581208-007XTR2Time Clock B/W Filter, INT'L Power Supply, 4" Base, 1.9" OD Distributor Pilot
581208-010XTRi1.25" Integral Meter, Downflow Softener, U.S. Power Supply, 2.5" Base, Less Distributor Pilot, #00 Injector, 0.125 GPM BLFC
581208-011XTRiTime Clock B/W Filter, U.S. Power Supply, 4" Base, 1.9" OD Distributor Pilot
581208-012XTRiTime Clock B/W Filter, INT'L Power Supply, 4" Base, 1.9" OD Distributor Pilot
