Pentair Flotec FPCC3320 Emergency Battery Backup Pre-Assembled Sump Pump System

Combination Primary Sump Pump plus Emergency Battery Backup

KEY FEATURES

  • Basement Flood Protection - Operates automatically during power outage or if primary pump fails
  • Proprietary Smart Charging Technology - Recharges battery up to 5X faster and extends battery life.
  • High Performance Pump - Removes up to 48% more gallons per charge than the leading competitor.
  • Dual Battery Capacity - Provides extended run time.

WARRANTY

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

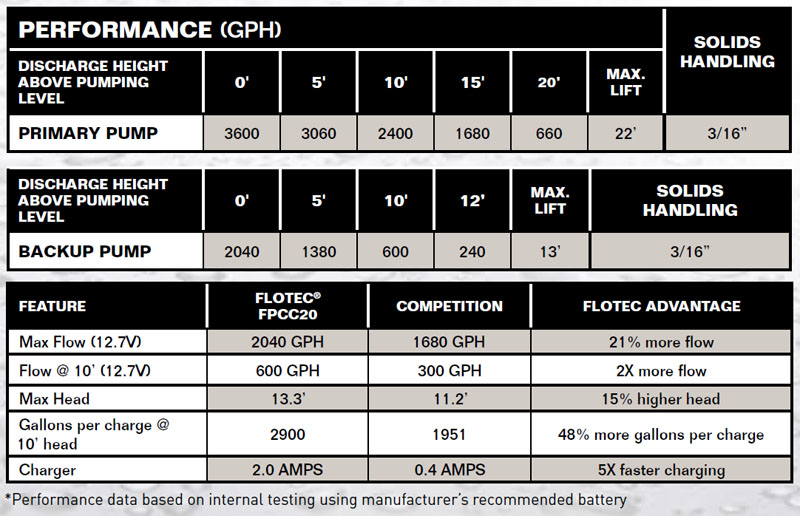

Performance Curves



Specifications

Body Construction: Primary: Zinc/Thermoplastic, Backup: Thermoplastic
MAX LIFT: Primary: 22', Backup: 13.3'
SWITCH TYPE: Primary: Vertical, Backup: Reed
MINIMUM SUMP DIAMETER: 14"
MINIMUM SUMP DEPTH: 18"
DISCHARGE PIPE SIZE: 1-1/2"
Minimum Pipe Size: 1-1/4"
LIQUID TEMPERATURE: 32°F to 70°F (0°C - 21°C)
Battery: Compatible with flooded and sealed AGM deep cycle lead acid batteries. For best performance use Flotec BAT40 or BAT75 Sealed AGM batteries.
Item #MAXIMUM FLOW RATEFLOW at 10-foot LIFTVoltageRECOMMENDED BREAKER
FPCC3320 Primary: 3600 GPH, Backup: 2040 GPHPrimary: 2400 GPH, Backup: 600 GPH115VAC Primary Pump and Charger, 12VDC Backup Pump15 Amps
Item #MAXIMUM FLOW RATEFLOW at 10-foot LIFTVoltageRECOMMENDED BREAKER
FPCC3320 Primary: 3600 GPH, Backup: 2040 GPHPrimary: 2400 GPH, Backup: 600 GPH115VAC Primary Pump and Charger, 12VDC Backup Pump15 Amps
