Pentair Flotec FP5512 1/2 HP Cast Iron Centrifugal Pump

Economical, general purpose centrifugal pumps can be used for water transfer, circulation, fountains, waterfalls, pressure boosting and sprinkling.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Rugged, heavy-duty cast iron pump housing
  • Ready-to-install 230 volt motor (dual voltage)

WARRANTY

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

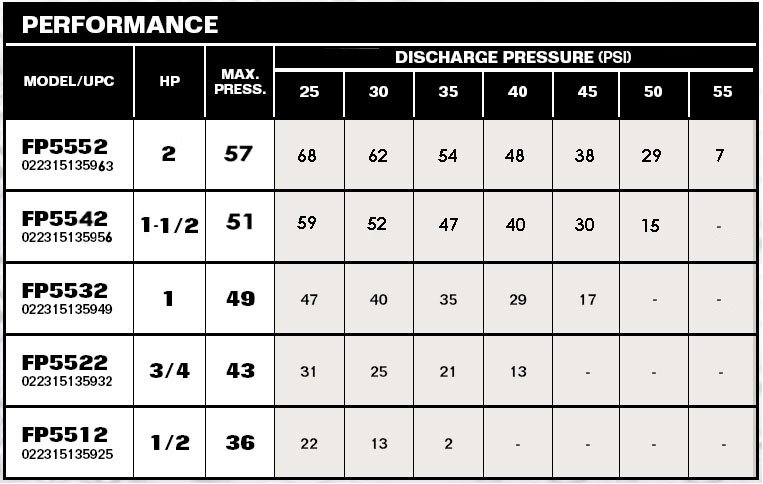

Performance Curves



Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/2
MAXIMUM CAPACITY:  22 GP
MAX LIFT:  25'
MAXIMUM DISCHARGE PRESSURE:  36 psi
SUCTION PIPE SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  4.7 amps on 230v / 9.4 amps on 115v
VOLTAGE:  230v / 115v , 60 Hz
MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)
RECOMMENDED BREAKER:  15 amp on 230v / 15 amp on 115v
