Pentair Flotec FP5252 2 HP Cast Iron Sprinkler Pump

Main Content Starts Here

Pentair Flotec FP5252 2 HP Cast Iron Sprinkler Pump

Cast iron sprinkler pumps are built tough for even the most demanding sprinkler jobs. Strong enough to manage large sprinkler zones with ease.

Key Features

  • Superior performance at depths to water of 25' or less
  • Ideal for larger sprinkler zones or water transfer
  • Rugged, cast iron pump housing
  • Ready-to-install 230 volt motor (dual voltage)

Warranty

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

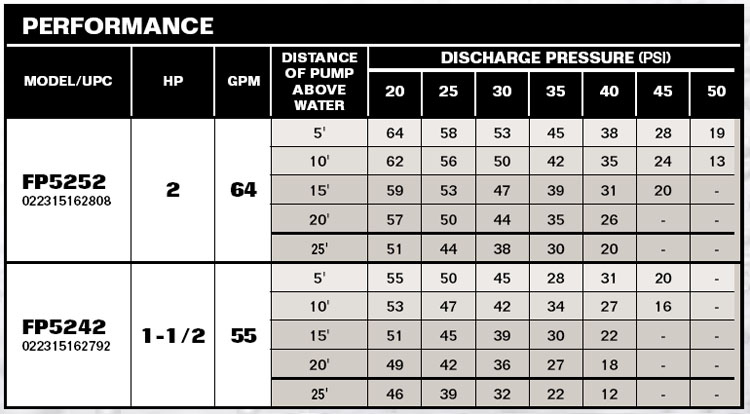

PERFORMANCE CURVES



Specifications

BODY CONSTRUCTION:  Cast iron
HORSEPOWER:  2
MAXIMUM CAPACITY:  64 GPM
FLOW at 10' LIFT and 30 PSI:  50 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  45 psi
SUCTION PIPE SIZE:  2" NPT
DISCHARGE PIPE SIZE:  2" NPT
AMP DRAW (full load):  12 amps
VOLTAGE:  230v, 60 Hz
RECOMMENDED BREAKER:  15 amp
MAXIMUM WATER TEMPERATURE:  140 F (60 C)
