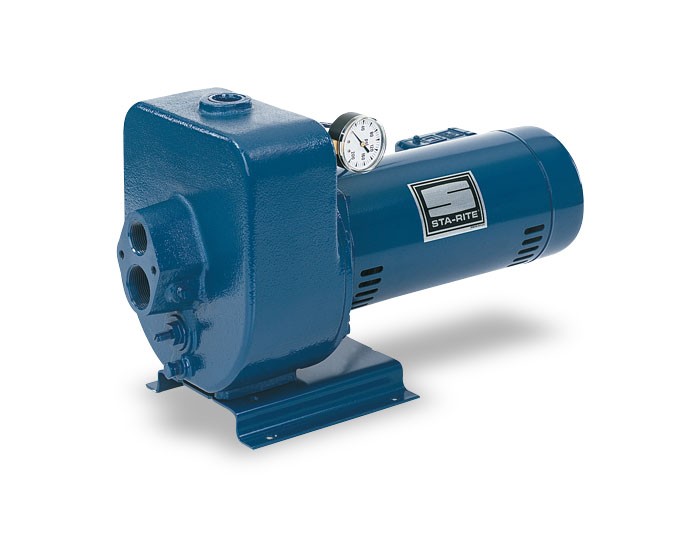

Pentair Sta-Rite HMS Series Cast Iron Horizontal Multi-Stage Jet/Centrifugal Pumps

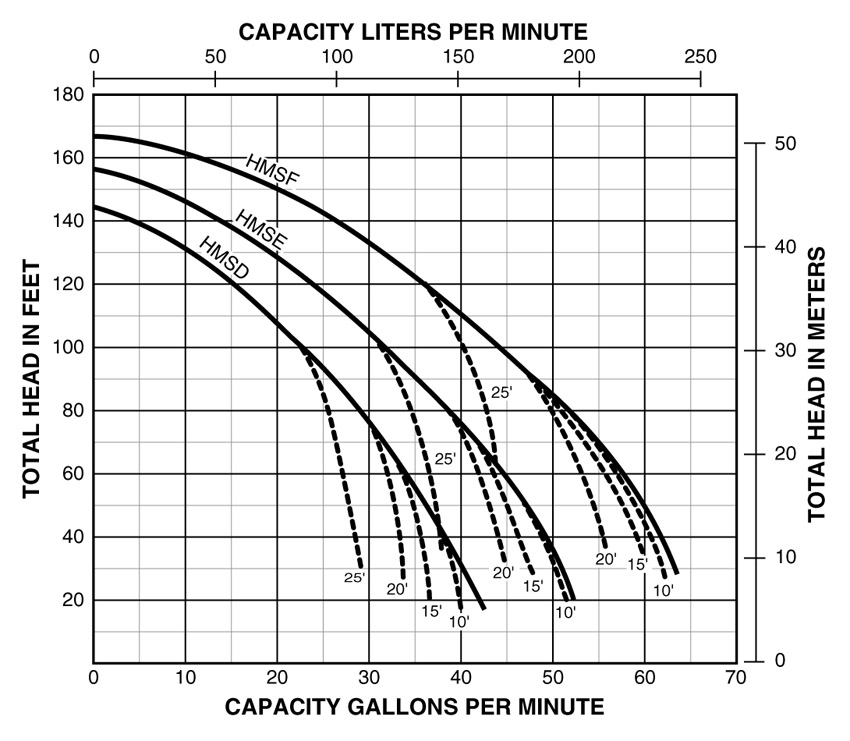

HMS Series pumps are available in 3/4, 1 and 1-1/2 HP models for a
wide range of applications in deep or shallow well with heads to 167
feet capacities to 62 GPM.
Key Features
- Quality Construction - Close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing
- Automatic Pressure Regulator - Faster-acting and quieter, design eliminates "hunting" for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells.
- Polycarbonate Impeller - Precision-molded for perfect balance and ultra-smooth for highest performance and efficiency.
- Motor Windings - Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.
Warranty
1 year limited warranty
Specifications
Item # | Horsepower |
---|---|
HMSD | 3/4 |
HMSE | 1 |
HMSF | 1-1/2 |
Item # | Horsepower |
---|---|
HMSD | 3/4 |
HMSE | 1 |
HMSF | 1-1/2 |
BODY CONSTRUCTION: Cast Iron
MAXIMUM CAPACITY: 15.9 GPM (HMSF with Shallow Well Setup)
FLOW at 10' LIFT and 40 PSI: 10.9 GPM (HMSE with Shallow Well Setup)
MAX LIFT: 25' w/ Shallow Well Jet Kit / 140' w/ Deep Well Jet Kit
MAX SHUT-OFF PRESSURE: 68 PSI (model HMSF)
MAXIMUM TOTAL PRESSURE (Inlet + Pump Pressure): HMSD: 60 PSI / HMSE: 65 PSI / HMSF: 68 PSI
PRESSURE SWITCH SETTING: 30-50 PSI
SUCTION SIZE: 1-1/4" NPT
DRIVE SIZE: 1" NPT
DISCHARGE SIZE: 1" NPT
VOLTAGE: 115v / 230v 60 Hz, 1-phase
MAXIMUM LIQUID TEMPERATURE: 140 F (60 C)
