Pentair Sta-Rite SSJ Series Cast Iron Vertical Single-Stage Deep Well Jet Pumps

Main Content Starts Here

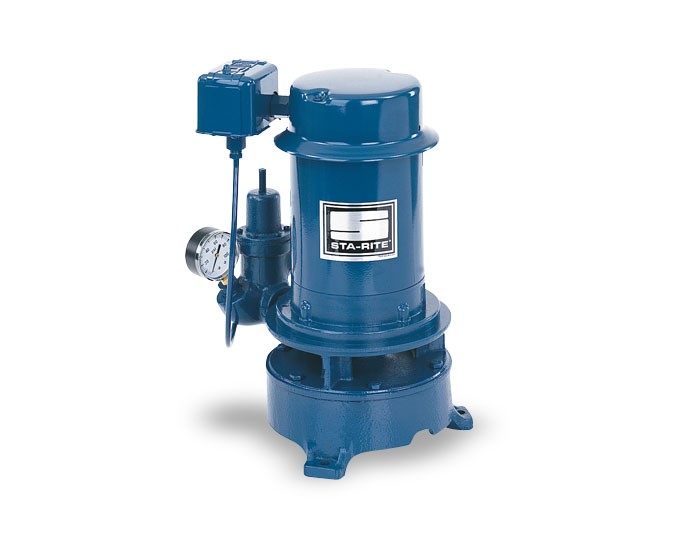

Pentair Sta-Rite SSJ Series Cast Iron Vertical Single-Stage Deep Well Jet Pumps

The SSJ Series Vertical Jet Pumps are the industry standard deep well jet pumps for over-the-well “bolt-on” installations.

Key Features

  • Automatic pressure regulator included results in faster-acting, quieter design eliminated "hunting" for correct drive pressure.
  • Quality construction with precision-machined, close-grained cast iron pump body and base are specially treated to resist corrosion.
  • Includes a pressure gauge, pressure switch and a complete line of casing adapters.
  • Ideal for water systems and sprinkling for homes, farms and cottages.

Warranty

1 year limited warranty

Explore purchase options available for this product.
Where to Buy

Performance Curves

PerformanceCurves_Vertical Single-Stage Deep Well Jet, Cast Iron, 1/2 thru 1 HP

Specifications

Item #Horsepower
SSJC1/2
SSJD3/4
SSJE1
Item #Horsepower
SSJC1/2
SSJD3/4
SSJE1
Show less

BODY CONSTRUCTION:  Cast Iron
MAXIMUM CAPACITY:  9.5 GPM (with 4" double-pipe setup)
FLOW at 50' LIFT and 40 PSI:  6.3 GPM (with 4" double-pipe setup)
MAX LIFT:  80'
MAX SHUT-OFF PRESSURE:  102 PSI (SSJE at shallow depth-to-water)
PRESSURE SWITCH SETTING:  40 - 60 PSI
SUCTION SIZE:  1-1/4" NPT
DISCHARGE SIZE:  1" NPT
DRIVE SIZE:  1" NPT
VOLTAGE:  115v / 230v, 60 Hz, 1-phase
MAXIMUM LIQUID TEMPERATURE:  140 F (60 C)
