Pentair Flotec E3305TLT Professional Series 1/3 HP Submersible Cast Iron Effluent Pump

Main Content Starts Here

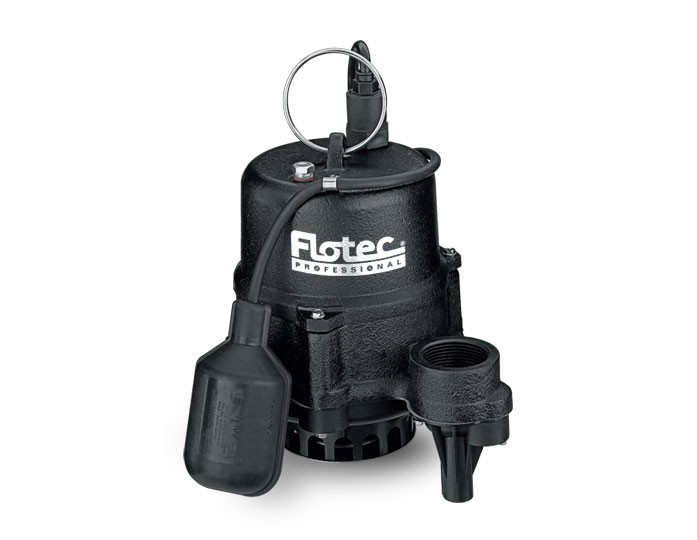

Pentair Flotec E3305TLT Professional Series 1/3 HP Submersible Cast Iron Effluent Pump

This rugged cast iron effluent pump handles up to ½” solids virtually without clogging.  It is perfect for septic tank systems where effluent has to be pumped up to a tank or leach field.  It is capable of handling grey water produced by laundry, bath and dishwashers.  This pump does not pump flushable waste such as sewage.

KEY FEATURES

  • Handles up to ½” solids
  • Rugged cast-iron construction for longer pump life
  • Ideal for septic tank, laundry and dishwasher applications
  • Rust-proof impellers
  • Reliable, professional design
  • Superior performance

WARRANTY

5 year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

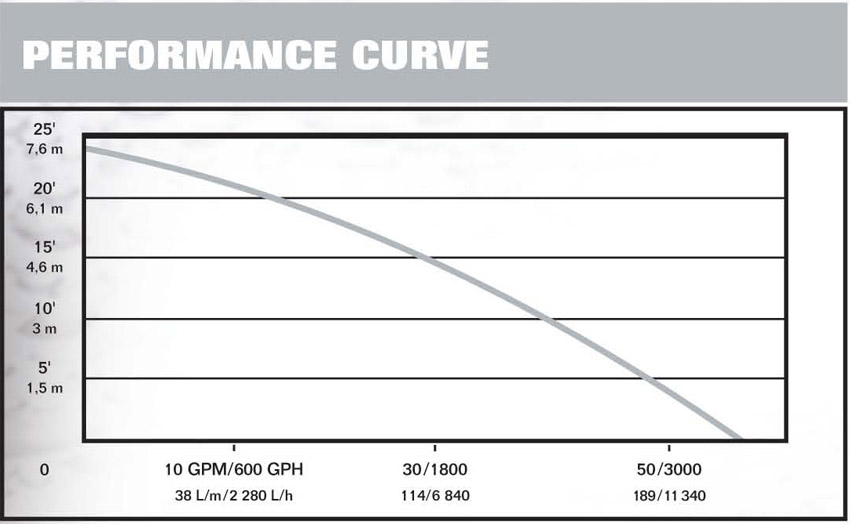

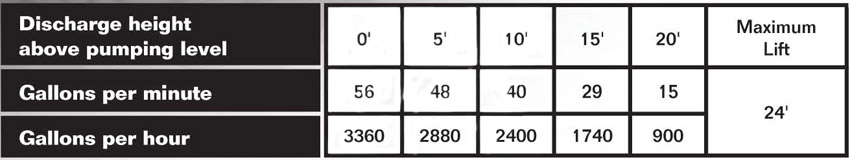

Performance Curves

PerformanceCurves_Professional Series 1/3 HP Submersible Cast Iron Effluent Pump
Performance Curves_Professional Series ⅓ HP Submersible Cast Iron Effluent Pump

Specifications

Item #Horsepower
E3305TLT1/3
Item #Horsepower
E3305TLT1/3
Show less

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/3 HP
MAXIMUM HEAD:  24 Ft. (7.3m)
MAXIMUM CAPACITY:  48 GPM (182 LPM)
FLOW at 10' LIFT:  40 GPM (151 LPM)
SWITCH TYPE:  Tethered Float
MINIMUM SUMP DIAMETER:  14” (356mm)
DISCHARGE PIPE SIZE:  1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  1/2"
AMP DRAW (full load):  9.8 Amps
CORD LENGTH:  20’ (6.1 m)
VOLTAGE:  115V AC, 60 HZ
MAXIMUM LIQUID TEMPERATURE:  130°F (54°C)
