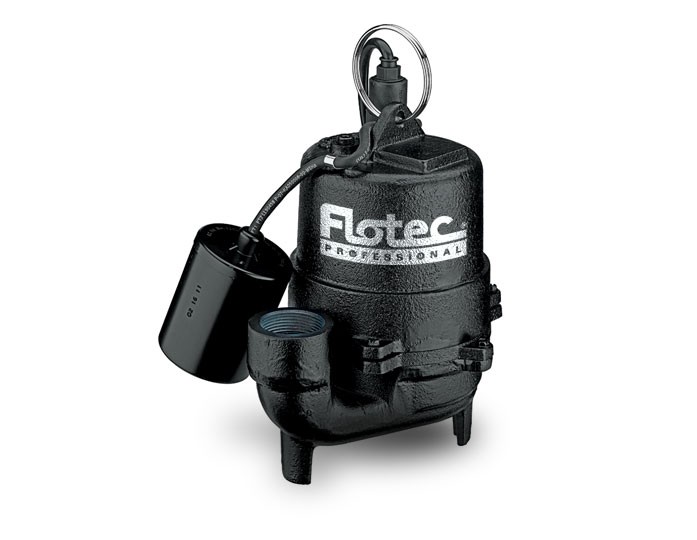

Pentair Flotec E3375TLT Professional Series 1/3 HP Submersible Cast Iron Effluent Pump

This rugged cast iron effluent pump handles up to ¾” solids virtually without clogging. It is perfect for septic tank systems where effluent has to be pumped up to a tank or leach field. It is capable of handling grey water produced by laundry, bath and dishwashers. This pump does not pump flushable waste such as sewage.

KEY FEATURES

  • Handles up to ¾” solids
  • Rugged cast-iron construction for longer pump life
  • Ideal for septic tank, laundry and dishwasher applications
  •  Rust-proof impellers
  • Reliable, professional design
  • Superior performance

WARRANTY

5-year limited warranty

Find out where to purchase online or in a retail location near you.

Accessories

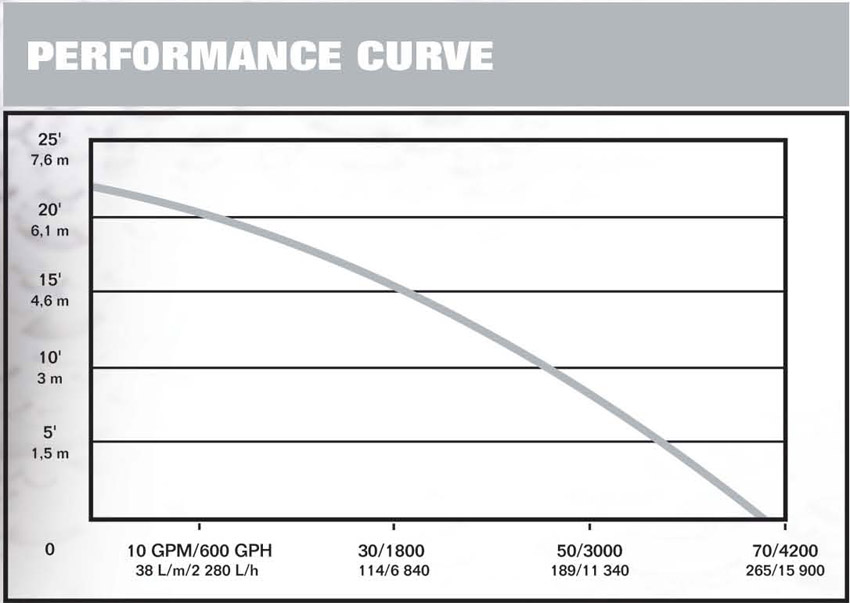

Performance Curves


PerformanceCurve_Professional Series ⅓ HP Submersible Cast Iron Effluent Pump

Resources

Specifications
Resources

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/3 HP
MAXIMUM HEAD:  22' (6.7m)
MAXIMUM CAPACITY:  58 GPM (220 lpm)
FLOW at 10' LIFT:  46 GPM (174 lpm)
SWITCH TYPE:  Tethered Float
SWITCH 'ON' LEVEL:  13.5" (343 mm)
SWITCH 'OFF' LEVEL:  4" (102 mm)
DISCHARGE PIPE SIZE:  1-1/2" NPT
MAXIMUM SOLIDS HANDLING SIZE:  3/4" (19 mm)
AMP DRAW (full load):  13 Amps
CORD LENGTH:  20' (6.1m)
VOLTAGE:  115V AC, 60 Hz
MAXIMUM LIQUID TEMPERATURE:  105° F (41° C).(for continuous operation)

OWNER'S MANUAL
Download Manual

SPECIFICATIONS
Download Specifications

Specifications

Item #Horsepower
E3375TLT1/3
Item #Horsepower
E3375TLT1/3
