Pentair Flotec FPCC5030 Emergency Battery Backup Pre-Assembled Sump Pump System

Main Content Starts Here

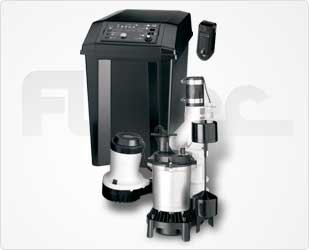

Pentair Flotec FPCC5030 Emergency Battery Backup Pre-Assembled Sump Pump System

The FPPCC5030 is a combination primary sump pump plus emergency battery backup.

KEY FEATURES

  • 22% more flow than leading competitor.
  • 83% more gallons per charge than leading competitor.
  • Proprietary Smart Charging Technology: Recharges battery 25% faster and extends battery life.
  • Pentair Home App Remote Monitoring: Constantly monitors system conditions and alerts you (by cell phone or computer) when your basement is in danger of flooding.
  • Dual Battery Capacity: Provides extended run time.

WARRANTY

2 year limited warranty

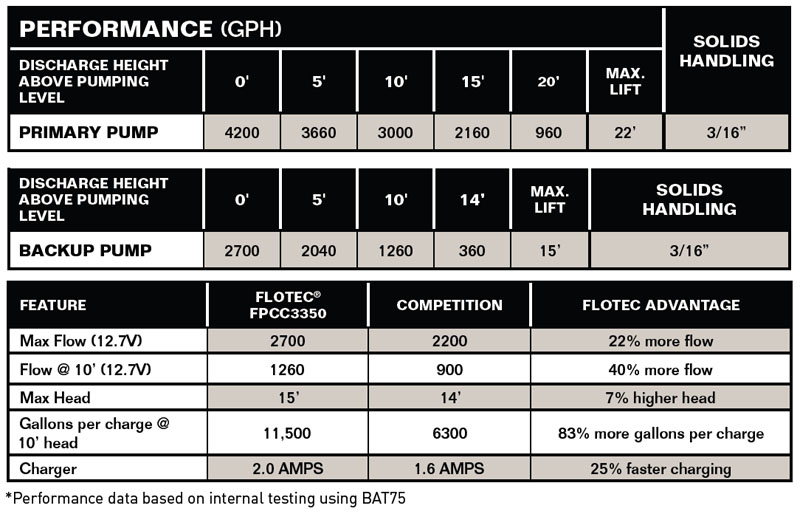

Performance Curves



Specifications

Body Construction: Primary: Zinc/Thermoplastic, Backup: Thermoplastic
MAX LIFT: Primary: 22', Backup: 15'
SWITCH TYPE: Primary: Vertical, Backup: Reed
MINIMUM SUMP DIAMETER: 14"
MINIMUM SUMP DEPTH: 18"DISCHARGE PIPE SIZE: 1-1/2"
Minimum Pipe Size: 1-1/4"
LIQUID TEMPERATURE: 32°F to 70°F (0°C - 21°C)
Battery: Compatible with flooded and sealed AGM deep cycle lead acid batteries. For best performance use Flotec BAT40 or BAT75 Sealed AGM batteries.
Item #MAXIMUM FLOW RATEFLOW at 10-foot LIFTVoltageRECOMMENDED BREAKER
FPCC5030Primary: 4200 GPH, Backup: 2700 GPHPrimary: 3000 GPH, Backup: 1260 GPH115VAC Primary Pump and Charger, 12VDC Backup Pump15 Amps
Item #MAXIMUM FLOW RATEFLOW at 10-foot LIFTVoltageRECOMMENDED BREAKER
FPCC5030Primary: 4200 GPH, Backup: 2700 GPHPrimary: 3000 GPH, Backup: 1260 GPH115VAC Primary Pump and Charger, 12VDC Backup Pump15 Amps
