Pentair Flotec FPPM3600D 1/3 HP Thermoplastic Pedestal Sump Pump

Main Content Starts Here

Pentair Flotec FPPM3600D 1/3 HP Thermoplastic Pedestal Sump Pump

The pedestal design is engineered for the easy installation and replacement of most other brands of pedestal pumps.

KEY FEATURES

  • Perfect for updating your aging pedestal pump system, this sump pump is engineered for easy installation and replacement of most other brands.
  • With a maximum output of 3,000 gallons per hour (GPH), the pump has a max lift of 20 feet and handles up to 1/4-inch solids.
  • Use it with sump basins or pits with a minimum diameter and depth of 12 inches.
  • Rugged thermoplastic construction is designed for high corrosion resistance.
  • This pump uses a 1-1/4-inch NPT-threaded discharge and includes a detailed owner’s manual with a 1-year limited manufacturer's warranty.

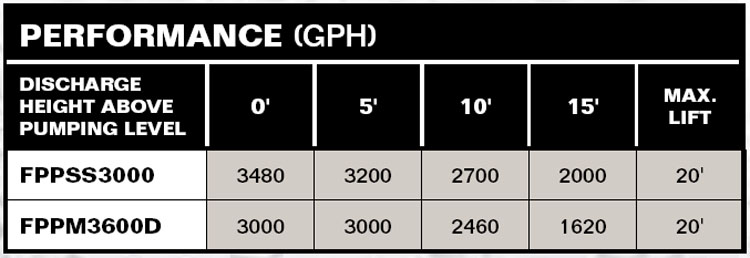

Performance Curves

PerformanceCurves_Thermoplastic Pedestal Sump Pump 1/3 HP

Specifications

Item #HorsepowerBody ConstructionMAXIMUM CAPACITYFlow at 10' liftSWITCH TYPESwitch On LevelSwitch Off LevelMINIMUM SUMP DIAMETERMINIMUM SUMP DEPTHDISCHARGE PIPE SIZEMinimum Pipe SizeCord LengthVOLTAGESRECOMMENDED BREAKERLIQUID TEMPERATUREAgency Listing
FPPM3600D1/3Thermoplastic3000 GPH2460 GPHVertical10-1/2"2-1/2"12"12"1-1/4" FNPT1-1/4"6'115V, 60 HZ15 amps32°F to 70°F (0° to 21°C)CSA and CUS
Item #HorsepowerBody ConstructionMAXIMUM CAPACITYFlow at 10' liftSWITCH TYPESwitch On LevelSwitch Off LevelMINIMUM SUMP DIAMETERMINIMUM SUMP DEPTHDISCHARGE PIPE SIZEMinimum Pipe SizeCord LengthVOLTAGESRECOMMENDED BREAKERLIQUID TEMPERATUREAgency Listing
FPPM3600D1/3Thermoplastic3000 GPH2460 GPHVertical10-1/2"2-1/2"12"12"1-1/4" FNPT1-1/4"6'115V, 60 HZ15 amps32°F to 70°F (0° to 21°C)CSA and CUS
