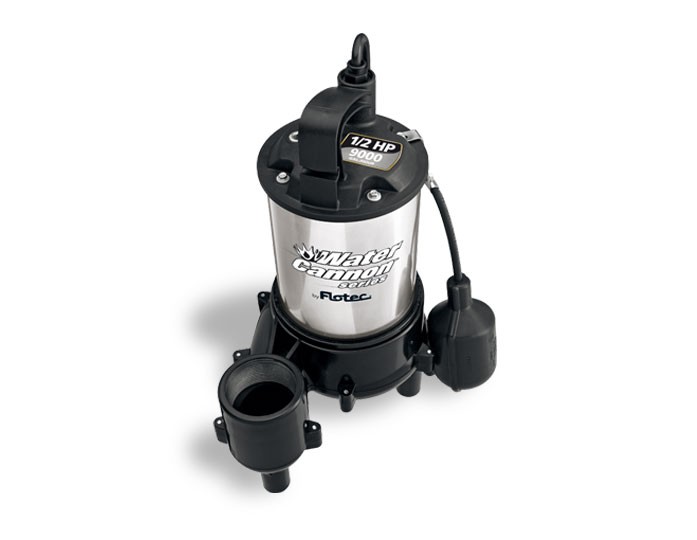

Pentair Flotec FPSE9000 1/2 HP Submersible Stainless Steel / Thermoplastic Sewage Pump

This stainless steel / thermoplastic sewage pump is designed for heavy-duty applications.  With 1/2 HP performance, it can handle 2" solids and can pump over 8,000 gallons per hour!

KEY FEATURES

  • Heavy-Duty Stainless Steel Construction for Heavy-Duty Applications
  • Handles Up To 2" SolidsVirtually Clog Resistant Discharge
  • Features a Piggyback-Connected Tethered Switch

WARRANTY

5-year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

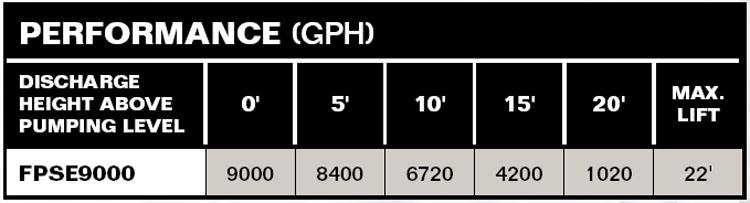

Performance Curves

PerformanceCurves_ Submersible Stainless Steel / Thermoplastic 1/2 HP Sewage Pump

Specifications

Item #Horsepower
FPSE90001/2
Item #Horsepower
FPSE90001/2
Show less

BODY CONSTRUCTION:  Stainless Steel & Thermoplastic
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  9,000 GPH
FLOW AT 10' LIFT:  6,720 GPH
SWITCH TYPE:  Tethered
SWITCH 'ON' LEVEL:  14"
SWITCH 'OFF' LEVEL:  5-1/2"
MINIMUM SUMP DIAMETER:  18"
MINIMUM SUMP DEPTH:  30"
DISCHARGE PIPE SIZE:  2" NPT
MINIMUM PIPE SIZE:  2" (for effluent or sump use, can use minimum 1-1/2")
MAXIMUM SOLIDS HANDLING:  2"
CORD LENGTH:  10'
AMP DRAW:  8.2 amps (at full load)
VOLTAGE:  115v AC, 60 Hz
RECOMMENDED BREAKER:  15 amp
LIQUID TEMP RANGE:  32°F to 130°F (0°–55°C)
