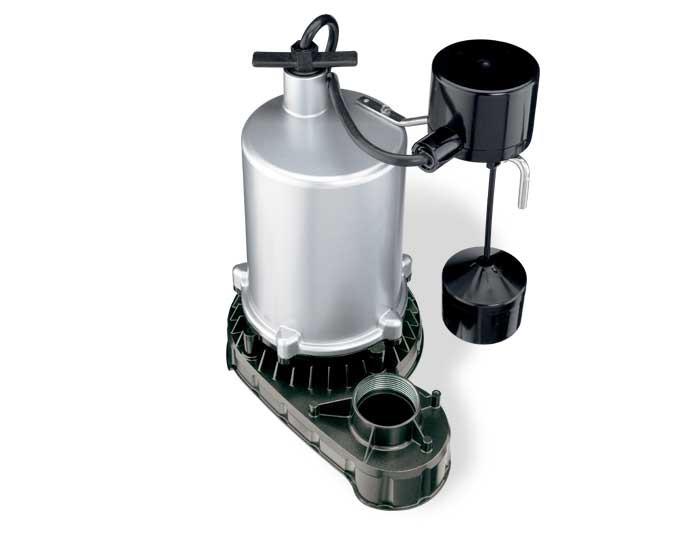

Pentair Flotec FPZT7450 3/4 HP Zinc Body Submersible High Output Sump Pump

This pump offers our highly engineered sump pump design, along with high-output performance – achieving over 6,300 gallons per hour! A great option for very active sump pits.

KEY FEATURES

  • Corrosion Resistant Zinc Construction - Dissipates heat quickly and extends motor life
  • Uni-Body Motor Housing - Eliminates leak points and maximizes pump life
  • Stainless Steel Fasteners and Hardware - Superior quality
  • Quadra SealTM Technology - Provides superior motor protection over single seal designs
  • Smooth Flow HydraulicsTM - Deliver high performance for demanding applications
  • Vertical Float Switch - Operates in 10” basins or larger

WARRANTY

3-year limited warranty

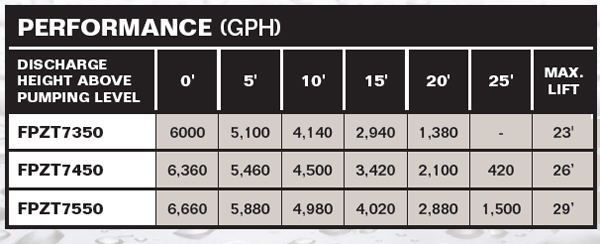

Performance Curves

PerformanceCurves_3/4 HP Zinc Body Submersible High Output Sump Pump, Vertical Switch

Specifications

Item #Horsepower
FPZT74503/4
Item #Horsepower
FPZT74503/4

BODY CONSTRUCTION:  Zinc

HORSEPOWER:  3/4

MAXIMUM CAPACITY:  6,360 GPH

FLOW at 10' LIFT:  4,500 GPH

SWITCH TYPE:  Vertical Float

FLOAT SWITCH 'ON' LEVEL:  7-1/2"

FLOAT SWITCH 'OFF' LEVEL:  3"

MINIMUM SUMP DIAMETER:  10"

DISCHARGE PIPE SIZE:  1 1/2” NPT

MAXIMUM SOLIDS HANDLING SIZE:  3/8"

CORD LENGTH:  8'

VOLTAGE:  115 VAC, 60 Hz.
