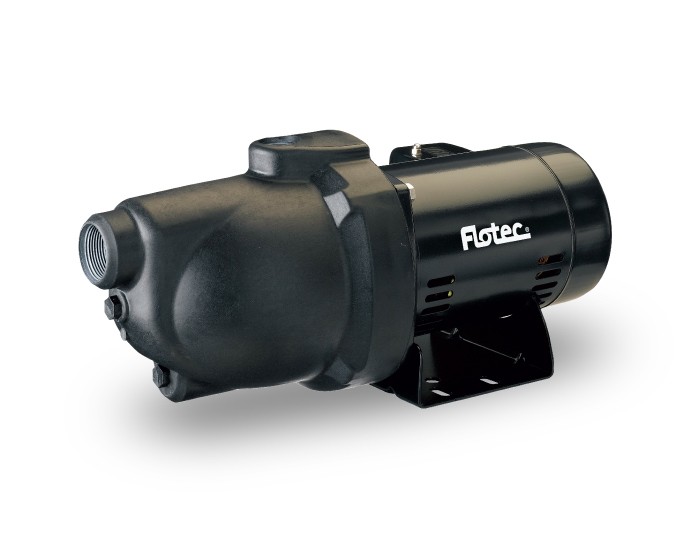

- Pentair Flotec FP4012-10 Thermoplastic Shallow Well Jet Pump

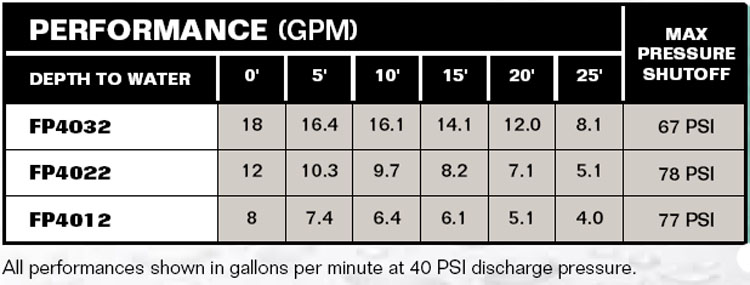

Performance Curves

This new revision of an "old hand" provides good pressure pumping from wells where the depth-to-water is 25' or less.
1 year limited warranty
Item # | Horsepower | Body Construction | MAXIMUM CAPACITY | Flow at 10' lift | MAX LIFT | MAX PRESSURE | Suction Pipe Size | Discharge Pipe Size | AMP DRAW full load | VOLTAGES | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE |
---|---|---|---|---|---|---|---|---|---|---|---|---|
FP4012-10 | 1/2 | Thermoplastic | 8 GPM | 6.4 GPM | 25' | 77 psi | 1-1/4" NPT | 1" NPT | 9.4 amps | 115v/230v, 60 Hz (factory preset to 115v) | 15 amp | 140°F (60°C) |
Item # | Horsepower | Body Construction | MAXIMUM CAPACITY | Flow at 10' lift | MAX LIFT | MAX PRESSURE | Suction Pipe Size | Discharge Pipe Size | AMP DRAW full load | VOLTAGES | RECOMMENDED BREAKER | MAXIMUM WATER TEMPERATURE |
---|---|---|---|---|---|---|---|---|---|---|---|---|
FP4012-10 | 1/2 | Thermoplastic | 8 GPM | 6.4 GPM | 25' | 77 psi | 1-1/4" NPT | 1" NPT | 9.4 amps | 115v/230v, 60 Hz (factory preset to 115v) | 15 amp | 140°F (60°C) |
