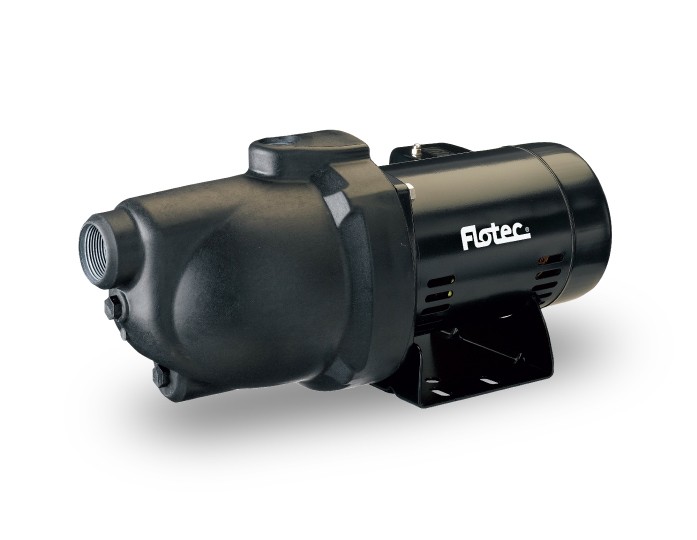

Pentair Flotec FP4032 1 HP Thermoplastic Shallow Well Jet Pump

This new revision of an "old hand" provides good pressure pumping from wells where the depth-to-water is 25' or less.

KEY FEATURES

  • Perfect for shallow wells (depth-to-water less than 25')
  • Thermoplastic construction for higher corrosion resistance
  • 1-1/4" Suction / 1" Discharge
  • Comes with pre-wired 30/50 pressure switch

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

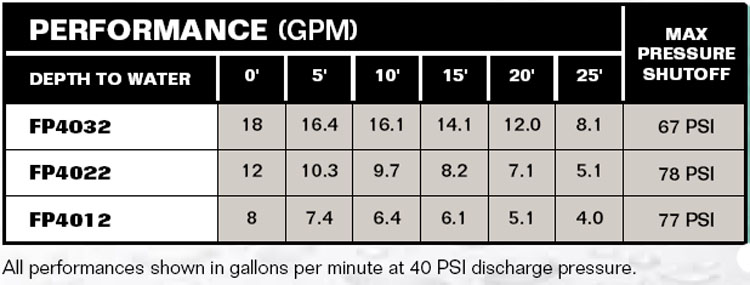

Performance Curves

PerformanceCurves_Thermoplastic Shallow Well Jet Pump 1 HP

Accessories

Specifications
Resources

BODY CONSTRUCTION:  Thermoplastic

HORSEPOWER:  1

MAXIMUM CAPACITY:  18 GPM

FLOW at 10' LIFT and 40 PSI:  16.1 GPM

MAX LIFT:  25'

MAXIMUM PRESSURE:  67 psi

PRESSURE SWITCH SETTING:  30/50

SUCTION PIPE SIZE:  1-1/4" NPT

DISCHARGE PIPE SIZE:  1" NPT

AMP DRAW (full load):  9.6 amps on 230v / 19.2 amps on 115v

VOLTAGE:  230v / 115v, 60 Hz

RECOMMENDED BREAKER:  15 amp on 230v / 25 amp on 115v

MAXIMUM WATER TEMPERATURE:  140 °F (60 °C)

OWNER'S MANUAL: FP4012-10, FP4022-10, FP4032-10, FP401215H, FP4112-08, FP4122-08, FP4122C, FP4822-08, FP4832-08
Download Manual

PARTS LISTING: FP4012-10, FP4022-10, FP4032-10, FP401215H-10
Download Parts

SPECIFICATIONS: FP4012-10, FP4022-10, FP4032-10
Download Specifications
