Pentair Flotec FP4112 1/2 HP Cast Iron Shallow Well Jet Pump

Cast iron shallow well jet pumps provide superior performance and high capacities with more pressure for shallow wells 25' or less.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Rugged, heavy-duty cast iron pump housing
  • Ready-to-install dual voltage (115v/230v) motor
  • 1-1/4" NPT suction and 1" NPT discharge pipe sizes

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

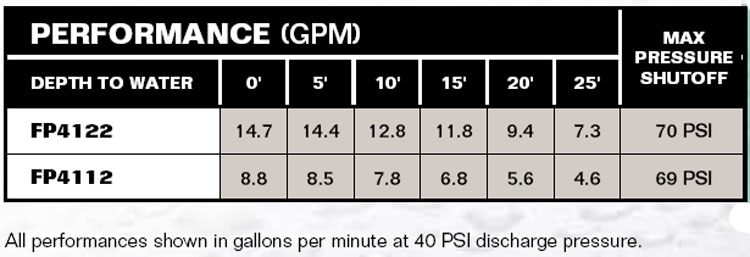

Performance Curves

PerformanceCurves_Cast Iron Shallow Well Jet Pump 1/2 HP

Accessories

Specifications
Resources

BODY CONSTRUCTION:  Cast Iron
MAXIMUM CAPACITY:  8.8 GPM
FLOW AT 10' LIFT and 40 PSI:  7.8 GPM
MAX PSI:  56 psi
PRESSURE SWITCH SETTING:  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
MINIMUM SUCTION PIPE SIZE:  1" NPT
DISCHARGE PIPE SIZE:  1"
MINIMUM DISCHARGE PIPE SIZE:  3/4"
AMP DRAW:  9.4 amps
VOLTAGE:  115v/230v (preset to 115v), 60 Hz
RECOMMENDED BREAKER:  15 amp
LIQUID TEMP RANGE:  32°F-140 °F (0°C-60 °C)
JET KIT:  included
ACCESSORIES INCLUDED:  none

OWNER'S MANUAL: FP4012-10, FP4022-10, FP4032-10, FP401215H, FP4112-08, FP4122-08, FP4122C, FP4822-08, FP4832-08
Download Manual

PARTS LISTING: FP4112-08, FP4122-08
Download Parts

SPECIFICATIONS: FP4112-08, FP4122-08
Download Specifications

GENERAL JET PUMP RESOURCES
Pressure Switch Adjustment

Specifications

Item #Horsepower
FP4112-081/2
Item #Horsepower
FP4112-081/2
