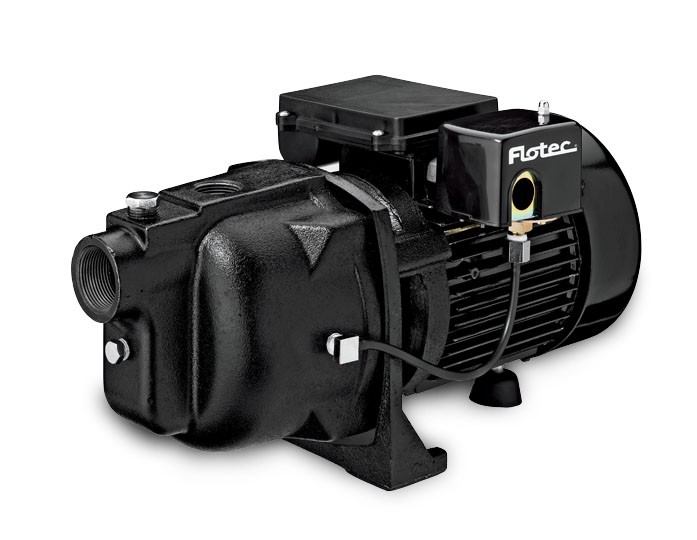

Pentair Flotec FP4155 1/2 HP Cast Iron Shallow Well Jet Pump

Tough & rugged 1/2 HP cast iron shallow well jet pump is perfect for smaller homes or cabins where the well's depth-to-water is 25' of less

KEY FEATURES

  • Heavy-Duty Cast Iron Construction
  • Superior Performance at Depths-to-Water of 25' of Less
  • Pre-Wired Pressure Switch
  • Dual Voltage Motor Can Run on 115v or 230v (factory preset to 115v)
  • WARRANTY:1-year limited warranty
Find out where to purchase online or in a retail location near you.

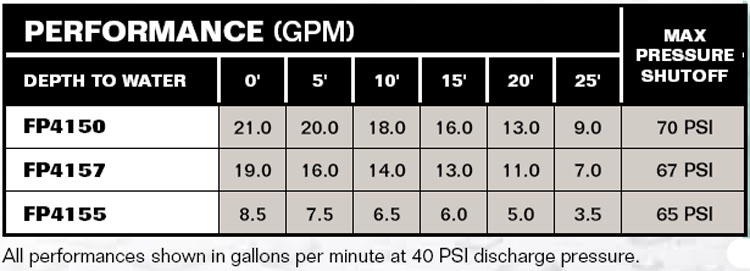

Performance Curves



Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  1/2 HP
MAXIMUM CAPACITY:  8.5 GPM (32.1 LPM)
FLOW at 10' LIFT and 40 PSI:  6.5 GPM (24.6 LPM)
MAX LIFT:  25'
MAX SHUT-OFF PRESSURE:  65 PSI
PRESSURE SWITCH SETTING:  30/50
SUCTION SIZE:  1-1/4" NPT
DISCHARGE SIZE:  1" NPT
AMP DRAW (full load):  8.5 amps on 115v / 4.2 amps on 230v
VOLTAGE:  230v / 115v AC, 60 Hz
RECOMMENDED BREAKER:  15 amp
MAXIMUM WATER TEMPERATURE:
