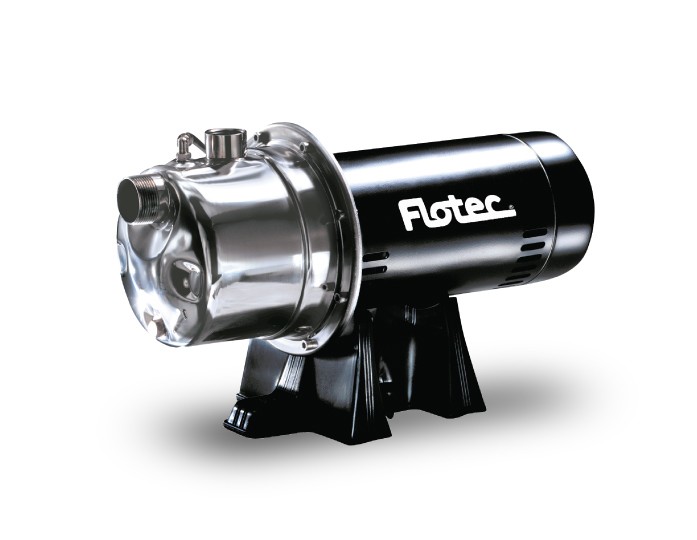

Pentair Flotec FP4832-08 1 HP Stainless Steel Shallow Well Jet Pump

Stainless steel shallow well jet pumps are heavy-duty, durable, corrosion resistant, high pressure and offer efficient non-stop operation for years.

KEY FEATURES

  • Superior performance at depths to water of 25' or less with maximum pumping capacities to 18.4 GPM
  • Heavy-duty, stainless steel pump housing for highest corrosion resistance
  • Ready-to-install 230 volt motor - see manual for 115 volt conversion
  • 1-1/4" NPT suction and 1" NPT discharge pipe sizes
  • 1 HP

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

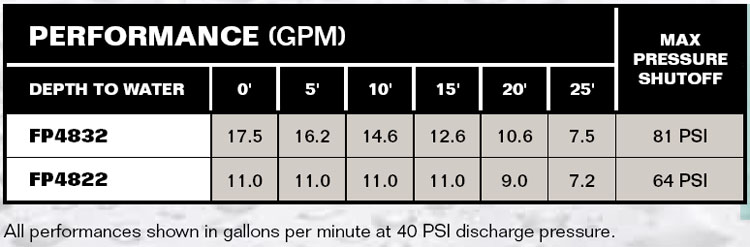

Performance Curves

PerformanceCurves_Stainless Steel Shallow Well Jet Pump 1 HP

Accessories

Specifications

BODY CONSTRUCTION:  Stainless Steel
HORSEPOWER:  1
MAXIMUM CAPACITY:  17.5 GPM
FLOW at 10' LIFT and 40 PSI:  14.6 GPM
MAX LIFT:  25'
MAXIMUM PRESSURE:  58 psi
MAXIMUM INLET PRESSURE:
PRESSURE SWITCH SETTING:
  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  9.6 amps on 230v / 19.2 amps on 115v
VOLTAGE:  230v / 115v, 60Hz
RECOMMENDED BREAKER:  15 amp on 230v / 25 amp on 115v
MAXIMUM WATER TEMPERATURE:  122°F (50°C)
