Shurflo Water Pressure Reducer Valves (WPRV)
The Shurflo water pressure reducer valves are designed to stabilize incoming water pressure fluctuations and guard against sudden pressure spikes.These non-adjustable pressure regulators ensure ppressure reduction based on input pressure and outlet flow rate.
- Available working pressure: 30, 50 & 65 PSI [2.1 - 4.5 bar]
- Inlet/outlet connection: 3/8" barb
- Crafted with stainless steel fittings and body
Models / Specs
| Item # | Image | Model Number | Inlet Connection Size and Type | Max Pressure (PSI) | Outlet Connection Size and Type | Pack Size |
|---|---|---|---|---|---|---|
| 183-130-NF |  |
WPRV 30PSI (NF) | 1/2" NST | 30 | 1/2" NST | 12 |
| 183-130-SS |  |
WPRV 30PSI | 3/8" Barb | 30 | 3/8" Barb | 30 |
| 183-150-01 |  |
WPRV 50 PSI | 3/8" Barb | 50 | 3/8" Barb | 30 |
| 183-150-NF |  |
WPRV 50 PSI (NF) | 1/2" NST | 50 | 1/2" NST | 12 |
| 183-150-PG |  |
WPRV 50 PSI (w/PG) | 3/8" Barb | 50 | 3/8" Barb | 6 |
| 183-150-SS |  |
WPRV 50PSI | 3/8" Barb | 50 | 3/8" Barb | 30 |
| 183-151-00 |  |
WPRV 50 PSI | 3/8" Barb | 50 | 3/8" Barb | 1 |
| 183-165-01 |  |
WPRV 65 PSI | 3/8" Barb | 65 | 3/8" Barb | 30 |
| 183-165-02 |  |
WPRV 65 PSI (w/PG) | 3/8" Barb | 65 | 3/8" Barb | 6 |
| 183-165-NF |  |
WPRV 65PSI (NF) | 1/2" NST | 65 | 1/2" NST | 12 |

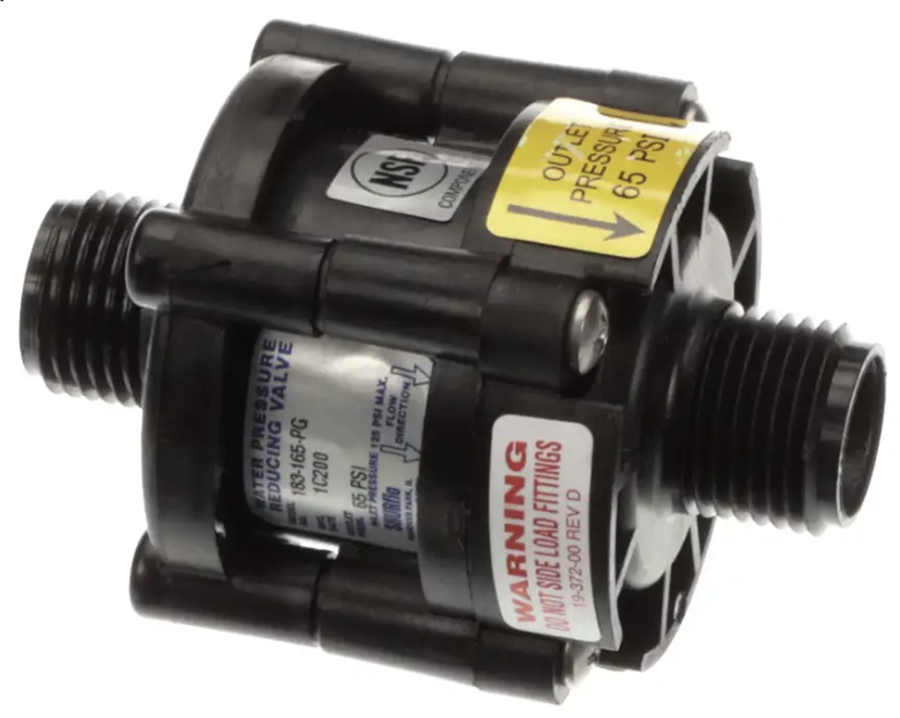

| 183-165-PG |  |
WPRV 65 PSI, 3/8B SS, PG | 3/8" SS | 65 | 3/8" SS | 1 |
| 183-165-QC14 |  |
WPRV 65PSI (1/4 JG) | 1/4" JG | 65 | 1/4" JG | 12 |
| 183-165-QC38 |  |
WPRV 65PSI (3/8 JG) | 3/8" JG | 65 | 3/8" JG | 12 |
| 183-165-SS |  |
WPRV 65PSI | 3/8" Barb | 65 | 3/8" Barb | 30 |
