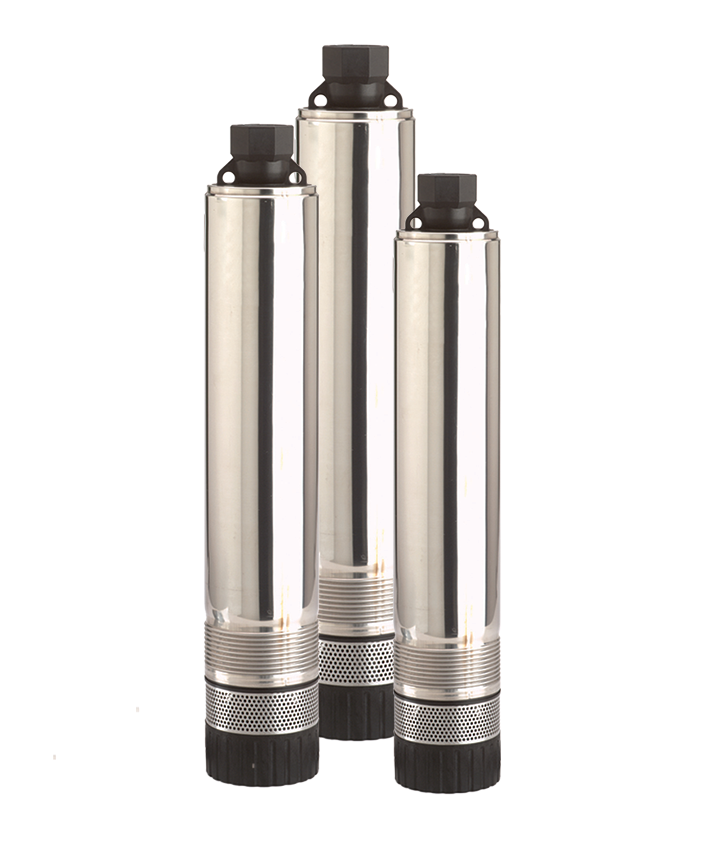

Pentair Sta-Rite ST.E.P. Plus D Series Stainless Steel 4" Multi-Stage Submersible Effluent Pumps

The ST.E.P. Plus D Series 4" submersible pump in 10, 20 and 30 GPM models dominate with superior “draw-down” capability, with reduced amp draw and with cooler and quieter operation.

KEY FEATURES

  • The proven SignaSeal staging system utilizes a patented ceramic wear surface. When incorporated with Sta-Rite’s “true” independent floating impellers, dominates with 1st-in-class performance, superior sand handling, and a thrust management staging system with industry exclusive “dry-run” capabilities.
  • The ST.E.P. Plus Dominates in this class with the lowest draw-down of 4-1/2” (a standard 4” NEMA submersible only draws-down to 13-1/2”).
  • The ST.E.P. Plus Dominates in this class with less energy consumption – over 25% less amp draw (9.5 amps vs. 12.7 amps, 115 volt) than a 4” NEMA submersible, reducing operating costs and extending the service life of float switch contacts.
  • The ST.E.P. Plus Dominates by using the pumped liquid to cool the motor as it passes over the motor. The water passing over the motor dampens the motor noise, eliminating expensive “flow-inducer sleeves” required when using a standard 4” NEMA submersible.
Explore purchase options available for this product.
Where to Buy

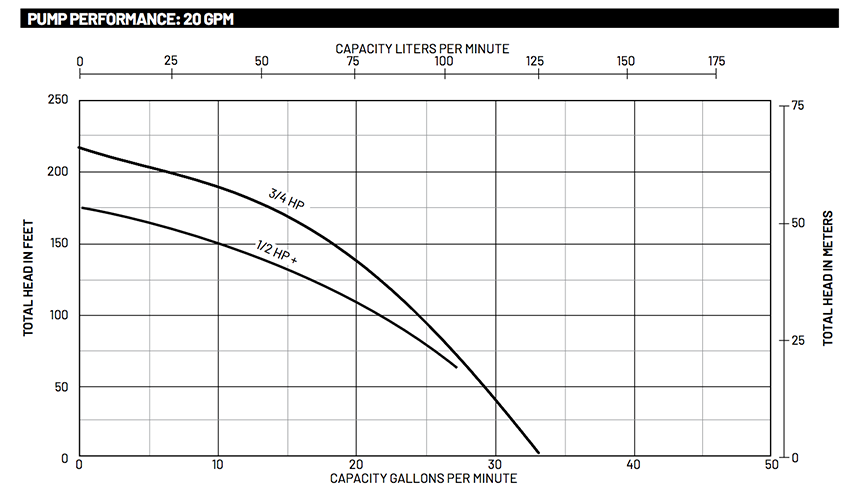

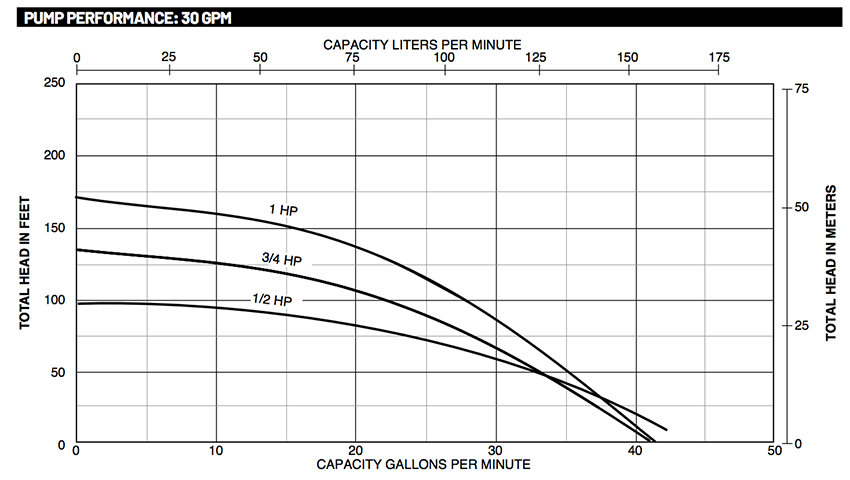

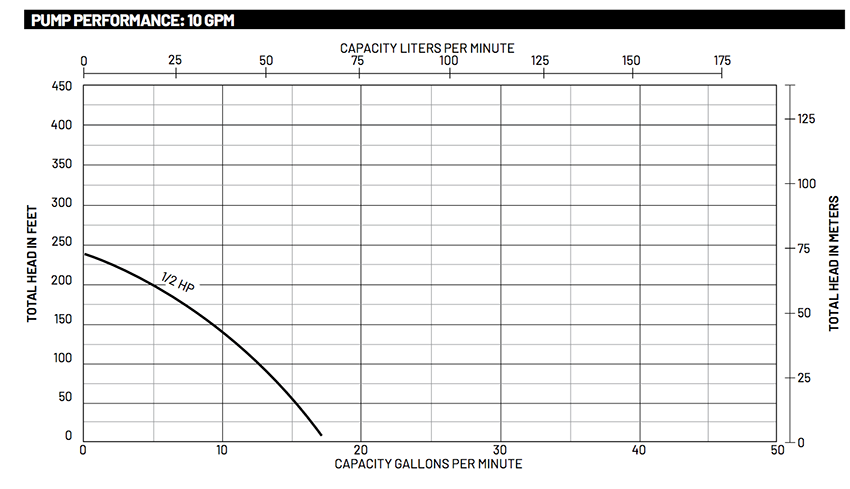

Performance Curves

Specifications

Item #HorsepowerMAX LOAD AMPSVOLTAGES
10DOM051211/211.0115
10DOM052211/25.5230
30DOM051211/29.5115
30DOM052211/24.6230
20DOM072213/46.5230
30DOM072213/45.6230
30DOM1022117230
Item #HorsepowerMAX LOAD AMPSVOLTAGES
10DOM051211/211.0115
10DOM052211/25.5230
30DOM051211/29.5115
30DOM052211/24.6230
20DOM072213/46.5230
30DOM072213/45.6230
30DOM1022117230
