Pentair Flotec FP2211 1/2 HP 2-Wire 4 Inch Submersible Well Pump

Main Content Starts Here

Pentair Flotec FP2211 1/2 HP 2-Wire 4 Inch Submersible Well Pump

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

KEY FEATURES

  • For 4" inside diameter or larger wells
  • Pumps from depths of 150ft
  • Floating Stack Design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing

WARRANTY

3 year limited warranty

Find out where to purchase online or in a retail location near you.

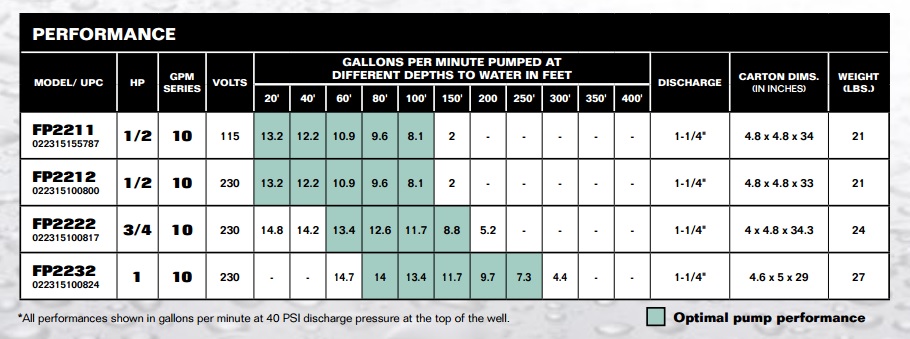

Performance Curves

PerformanceCurves_2-Wire 4 Inch Submersible Well Pump, 115 Volts 1/2 HP

Accessories

Specifications
Resources

HORSEPOWER:  1/2

PERFORMANCE SERIES:  10 GPM

VOLTAGE:  115v, 60 Hz

NUMBER OF WIRES:  2 plus ground

BODY CONSTRUCTION:  Stainless Steel and Thermoplastic

MAXIMUM CAPACITY:  13.6 GPM

OPERATION RANGE:  20' to 150'

MAXIMUM DEPTH-TO-WATER:  150'

MAX PSI:  105 psi

PUMP DIAMETER:  3.78"

DISCHARGE PIPE SIZE:  1-1/4" NPT

RECOMMENDED BREAKER:  25 amp

OWNER'S MANUAL: FP2211, FP2212, FP2222, FP2232, FP3212, FP3222, FP3232, FP3332

Download Manual

SPECIFICATIONS: 4" SUBMERSIBLES, 2-WIRE

Download Specs
