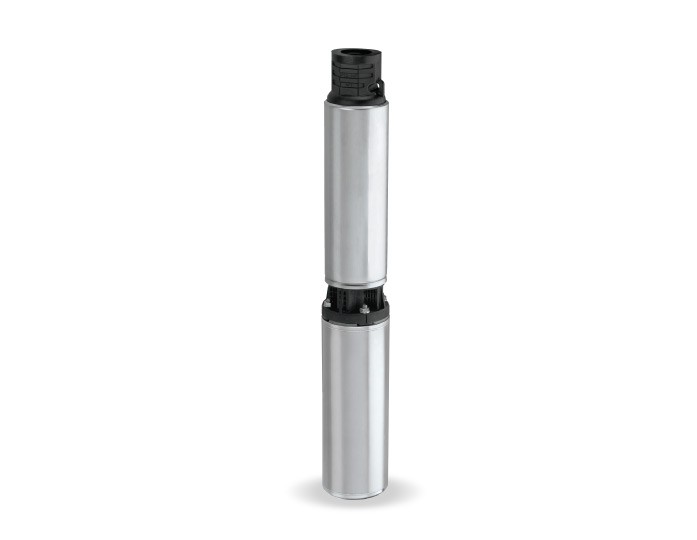

Pentair Flotec FP2222 3/4 HP 2-Wire 4 Inch Submersible Well Pump

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

KEY FEATURES

  • For 4" inside diameter or larger wells
  • Pumps from depths of 200ft
  • Floating Stack Design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing
  • 3/4 HP
  • 230 Volts
  • 10 GPM

WARRANTY

3 year limited warranty

Find out where to purchase online or in a retail location near you.

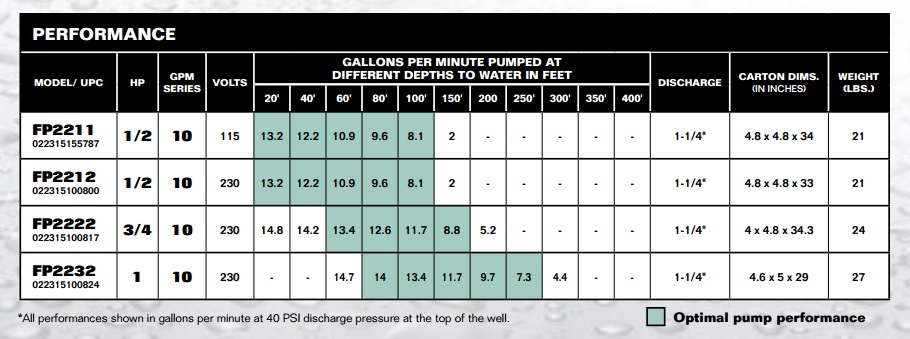

Performance Curves



Accessories

Specifications

HORSEPOWER:  3/4
PERFORMANCE SERIES:  10 GPM
VOLTAGE:  230v, 60 Hz
NUMBER OF WIRES:  2 plus ground
BODY CONSTRUCTION:  Stainless Steel
MAXIMUM CAPACITY:  14.9 GPM
OPERATING RANGE:  20' to 200'
MAXIMUM DEPTH-TO-WATER:  200'
MAX PSI:  127 psi
PUMP DIAMETER:  3.78"
DISCHARGE PIPE SIZE:  1-1/4" NPT
RECOMMENDED BREAKER:  15 amp
