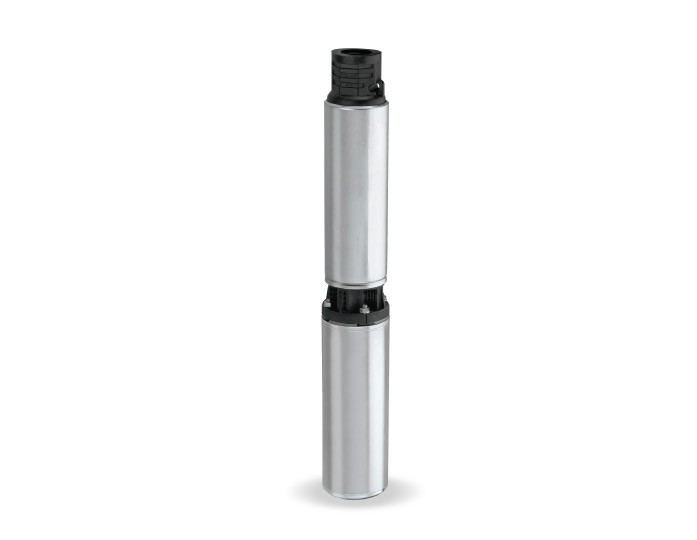

Pentair Flotec FP2232 1 HP 2-Wire 4 Inch Submersible Well Pump

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

KEY FEATURES

  • For 4" inside diameter or larger wells
  • Pumps from depths of 300ft
  • Floating Stack Design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing

WARRANTY

3 year limited warranty

Find out where to purchase online or in a retail location near you.

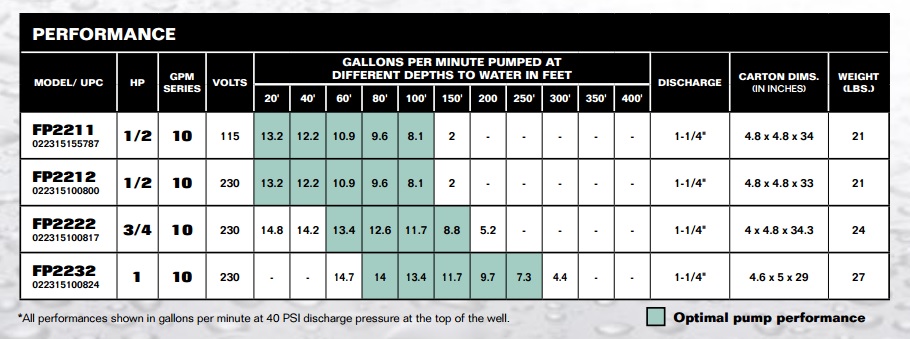

Performance Curves

PerformanceCurves_2-Wire 4 Inch Submersible Well Pump, 230 Volts 1 HP

Accessories

Specifications

HORSEPOWER: 1
PERFORMANCE SERIES: 10 GPM
VOLTAGE: 230v, 60 Hz
NUMBER OF WIRES: 2 plus ground
BODY CONSTRUCTION: Stainless Steel
MAXIMUM CAPACITY: 15.6 GPM
OPERATION RANGE: 60' to 300'
MAXIMUM DEPTH-TO-WATER: 300'
MAX PSI: 170 psi
PUMP DIAMETER: 3.78"
DISCHARGE PIPE SIZE: 1-1/4" NPT
RECOMMENDED BREAKER: 20 amp
