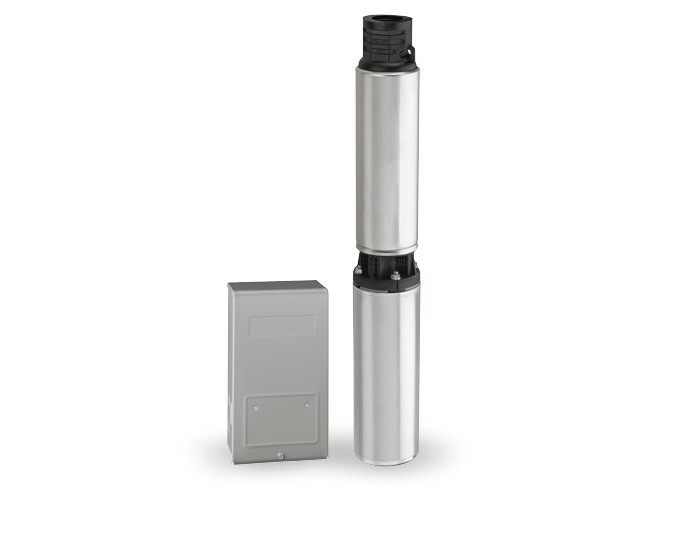

Pentair Flotec FP3332 1 HP 3-Wire 4 Inch Submersible Well Pump

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

KEY FEATURES

  • For 4" inside diameter or larger wells
  • Pumps from depths of 150ft
  • Floating Stack Design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing

WARRANTY

3 year limited warranty

Find out where to purchase online or in a retail location near you.
Where to Buy

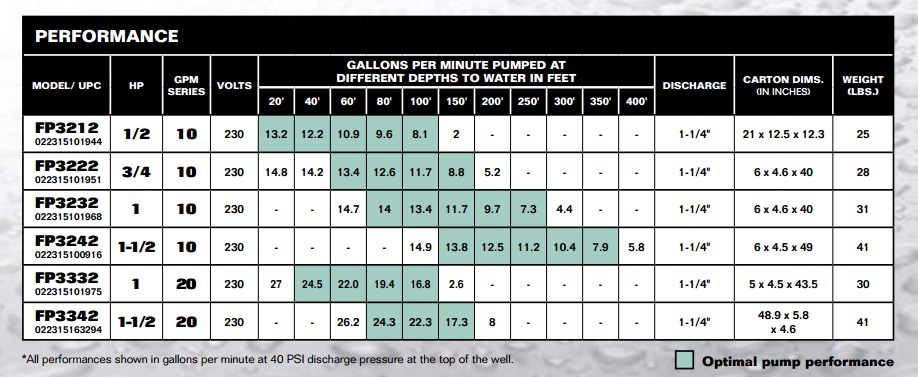

Performance Curves

PerformanceCurves_3-Wire 4 Inch Submersible Well Pump, 230 Volts 1 HP, 20 GPM

Specifications

HORSEPOWER:  1
PERFORMANCE SERIES:  20 GPM
VOLTAGE:  230v, 60 Hz
NUMBER OF WIRES:  3 plus ground
BODY CONSTRUCTION:  Stainless Steel
MAXIMUM CAPACITY:  26.2 GPM
OPERATING RANGE:  20' to 150'
MAXIMUM DEPTH-TO-WATER:  150'
MAX PSI:  105 psi
PUMP DIAMETER:  3.78"
DISCHARGE PIPE SIZE:  1-1/4" NPT
RECOMMENDED BREAKER:
