Pentair Flotec FP3342 1.5 HP 3-Wire 4 Inch Submersible Well Pump

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

KEY FEATURES

  • For 4" inside diameter or larger wells
  • Pumps from depths of 200ft
  • Floating Stack Design for sand resistance and reduced sand locking
  • Corrosion-resistant stainless steel pump and motor housing

WARRANTY

3 year limited warranty

Find out where to purchase online or in a retail location near you.

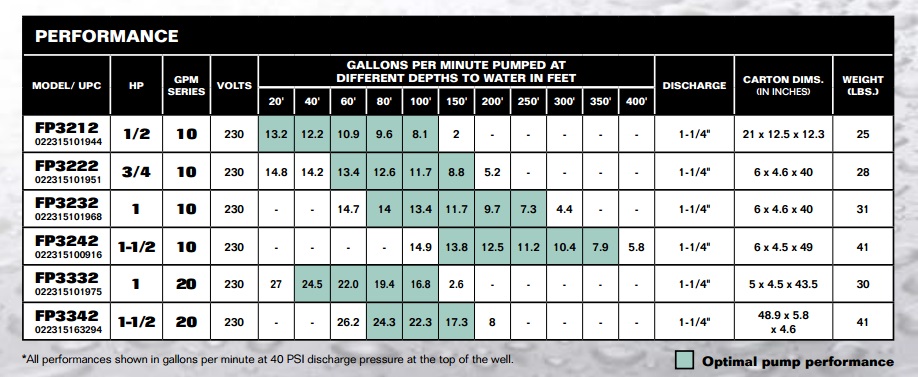

Performance Curves

PerformanceCurves_3-Wire 4 Inch Submersible Well Pump, 230 Volts 1.5 HP, 20 GPM

Accessories

Specifications
Resources
OWNER'S MANUAL: FP2211, FP2212, FP2222, FP2232, FP3212, FP3222, FP3232, FP3332

Download Manual

SPECIFICATIONS: 4" SUBMERSIBLES, 3-WIRE

Download Specs

Specifications

HORSEPOWER:  1-1/2
PERFORMANCE SERIES:  20 GPM
VOLTAGE:  230v, 60 Hz
NUMBER OF WIRES:  3 plus ground
BODY CONSTRUCTION:  Stainless Steel
MAXIMUM CAPACITY:  28.6 GPM
OPERATING RANGE:  60' to 200''
MAXIMUM DEPTH-TO-WATER:  200'
MAX PSI:  115 psi
DIAMETER:  3.78"
DISCHARGE PIPE SIZE:  1-1/4"
RECOMMENDED BREAKER:
