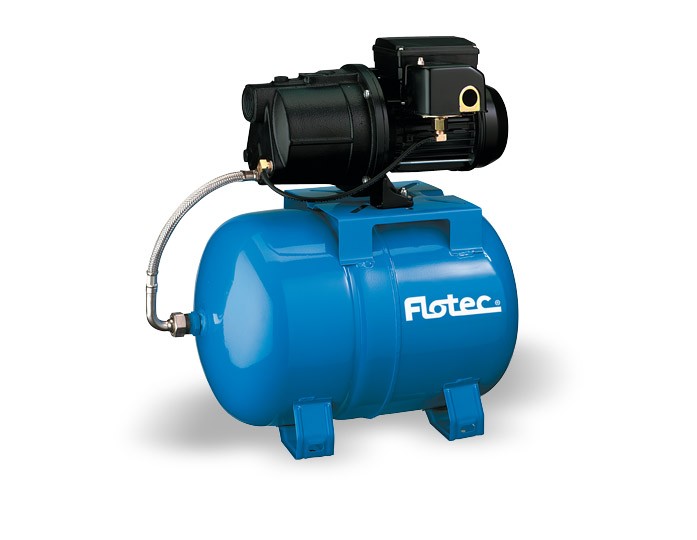

Pentair Flotec FP410515H 1/2 HP Cast Iron Jet/Tank System

Corrosion-resistant shallow well jet/tank system is ideal for compact installations where space is at a premium. Pump comes already mounted on tank.

KEY FEATURES

  • Superior performance at depths to water of 25' or less
  • Pump tank system pre-assembled and ready to install
  • Ready to install 115 volt 1/2 HP motor
  • Pre-charged 15 gallon equivalent diaphragm tank
  • Maximum pressure of 63 PSI

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

Performance Curves

PerformanceCurves_Cast Iron Jet/Tank System 1/2 HP

Accessories

Resources

OWNER'S MANUAL: FP4105, FP4107, FP410515H

PARTS LISTING: FP4105, FP4107, FP410515H

SPECIFICATIONS: FP410515H



Specifications

BODY CONSTRUCTION: Cast Iron
MAX LIFT: 25'
PRESSURE SWITCH SETTING: 30/50
Suction Pipe Size: 1" NPT
DISCHARGE PIPE SIZE: 1"
MAXIMUM WATER TEMPERATURE: 140 F (60 C)
TANK DRAWDOWN: .6 gal
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIST and 40 PSIMAX PRESSUREAMP DRAWVoltageRECOMMENDED BREAKER
FP410515H1/2 HP5.6 GPM4.5 GPM63 psi7.2 amps115v, 60 Hz15 amps
Item #Horse PowerMAXIMUM CAPACITYFLOW at 10-foot LIST and 40 PSIMAX PRESSUREAMP DRAWVoltageRECOMMENDED BREAKER
FP410515H1/2 HP5.6 GPM4.5 GPM63 psi7.2 amps115v, 60 Hz15 amps
