Pentair Flotec FP4207 3/4 HP Cast Iron Convertible Deep Well Jet Pump

Great strong performer for homes and cabins.  Pulls water from as deep as 70' to provide water to your home, cabin, or small sprinkler system.

KEY FEATURES

  • For Deep or Shallow Wells
  • Rugged Pump Housing -- Durable cast iron construction
  • Superior Performance --to depths to water of 70' or less
  • Heavy-Duty Dual-Voltage Motor -- preset at 230v
  • Replaceable Pressure Switch --30/50 operation
  • Includes Ejector Kit

WARRANTY

1-year limited warranty

Find out where to purchase online or in a retail location near you.

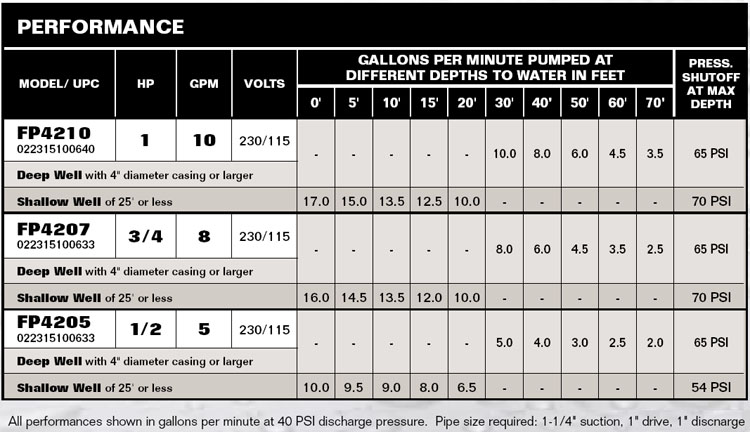

Performance Curves



Accessories

Specifications
Resources

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  3/4 HP

MAXIMUM CAPACITY:  16 GPM (shallow well setup)

FLOW at 10' LIFT and 40 PSI:  13.5 GPM (shallow well setup)

MAX LIFT:  70'

MAX SHUT-OFF PRESSURE:  70 PSI (shallow well setup)

PRESSURE SWITCH SETTING:  30 - 50 PSI

SUCTION SIZE:  1-1/4" NPT

DRIVE SIZE:  1" NPT

DISCHARGE SIZE:  1" NPT

AMP DRAW (full load):  5.5 amps on 230v / 11 amps on 115v

VOLTAGE:  230v / 115v AC, 60 Hz (factory preset at 230v)

RECOMMENDED BREAKER:  15 amp on 230v / 20 amp on 115v

OWNER'S MANUAL:  FP4150, FP4155, FP4157, FP4205, FP4207, FP4210

Download Manual

SPECIFICATIONS: FP4205, FP4207, FP4210

Download Specifications

GENERAL JET PUMP RESOURCES

Pressure Switch Adjustment
