Pentair Flotec FP4212 1/2 HP Cast Iron Convertible Jet Pump

Main Content Starts Here

Pentair Flotec FP4212 1/2 HP Cast Iron Convertible Jet Pump

KEY FEATURES

  • Superior performance at depths to water of 100' or less
  • Rugged, heavy-duty pump housing
  • Ready-to-install dual-voltage 115v/230v motor - see manual for 230 volt conversion
  • Pressure switch pre-wired with 30-50 PSI pressure setting
  • WARRANTY: 1-year limited warranty
Find out where to purchase online or in a retail location near you.

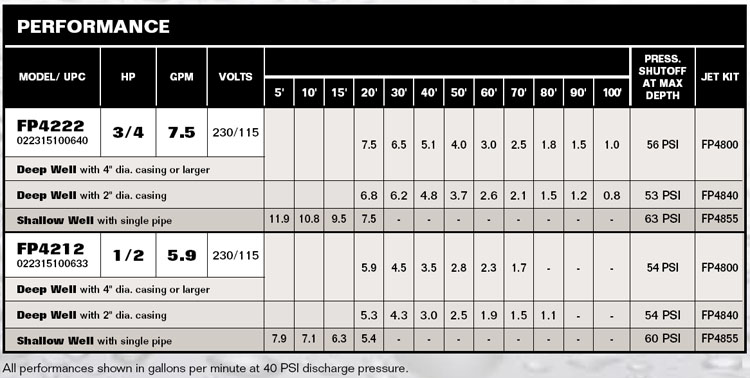

Performance Curves

performance_Pentair Flotec FP4212 Cast Iron Convertible Jet Pump 1/2 HP

Accessories

Specifications
Resources

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  1/2

MAXIMUM CAPACITY:  7.9 GPM (shallow setup)

FLOW at 10' LIFT and 40 PSI:  7.1 GPM (shallow setup)

MAX LIFT:  25' for shallow setup / 70' for deep setup

MAXIMUM PRESSURE:  60 psi (shallow setup) / 54 psi (deep setup)

PRESSURE SWITCH SETTING:  30/50

SUCTION PIPE SIZE:  1-1/4" NPT

DRIVE PIPE SIZE:  1" NPTDISCHARGE PIPE SIZE:  1"NPT

AMP DRAW (full load):  9.9 Amps on 115V / 4.95 Amps on 230V

VOLTAGE:  115v/230v, 60 Hz (factory preset to 115v)

RECOMMENDED BREAKER:  15 amp

MAXIMUM WATER TEMPERATURE:  140 F (60 C)

OWNER'S MANUAL: FP4212-08, FP4222-08, FP4312-08, FP4322-08, FP4332-08

 Download Manual

PARTS LISTING:FP4212-08, FP4222-08, FP4312-08, FP4322-08, FP4332-08

 Download Parts

SPECIFICATIONS

 Download Specifications

GENERAL JET PUMP RESOURCES

Pressure Switch Adjustment
