Pentair Flotec FP4222 3/4 HP Cast Iron Convertible Jet Pump

Cast iron convertible jet pumps can be used in shallow or deep well applications in " diameter wells or larger and are pre-set for 30-50 PSI operation.

KEY FEATURES

  • Superior performance at depths to water of 100' or less
  • Rugged, heavy-duty pump housing
  • Ready-to-install 230 volt motor - see manual for 115 volt conversion
  • Pressure switch pre-wired with 30-50 PSI pressure setting

WARRANTY

1 year limited warranty

Find out where to purchase online or in a retail location near you.

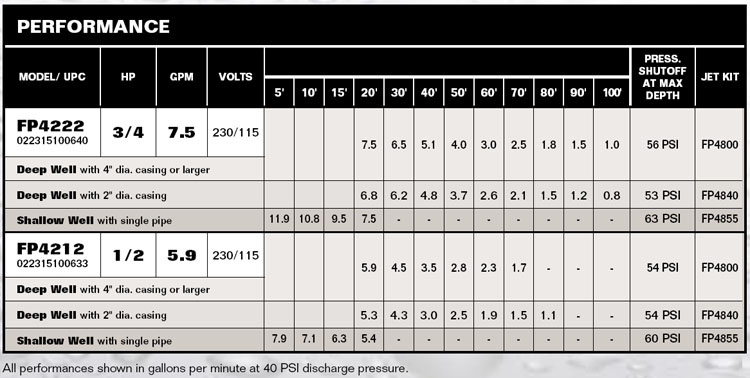

Performance Curves

PerformanceCurves_Cast Iron Convertible Jet Pump 3/4 HP

Accessories

Specifications

BODY CONSTRUCTION:  Cast Iron
HORSEPOWER:  3/4
MAXIMUM CAPACITY:  11.9 GPM (shallow setup)
FLOW at 10' LIFT and 40 PSI:  10.8 GPM (shallow setup)
MAX LIFT:  25' w/ shallow setup / 100' w/ deep well setup
MAXIMUM PRESSURE:  60 psi w/ shallow setup / 54 psi w/ deep setup
PRESSURE SWITCH SETTING:  30/50
SUCTION PIPE SIZE:  1-1/4" NPT
DISCHARGE PIPE SIZE:  1" NPT
AMP DRAW (full load):  6.1 amps on 230v / 12.2 amps on 115v
VOLTAGE:  230v / 115v, 60 Hz
RECOMMENDED BREAKER:  15 amp for 230v / 20 amp for 115v
MAXIMUM WATER TEMPERATURE:  140 F (60 C)
